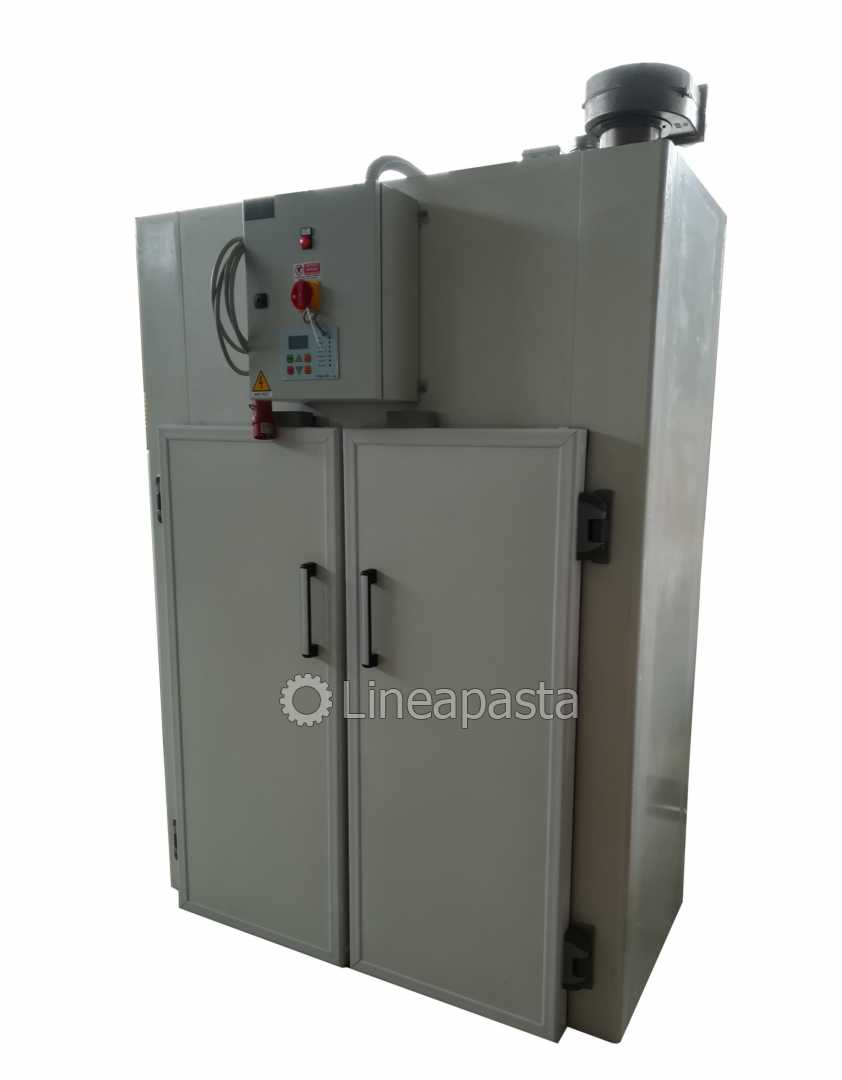

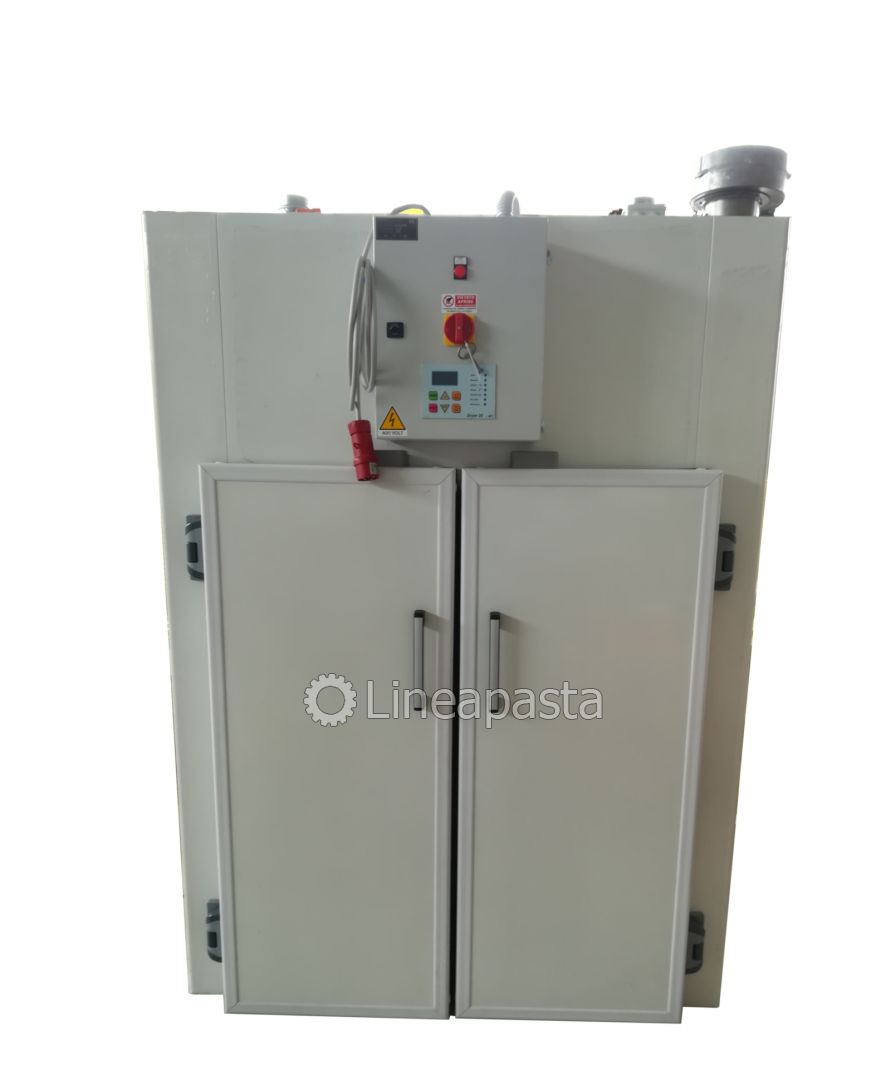

Pasta dryer EC 50

The EC 50 pasta dryer allows to perfectly dry any type of pasta and, by appropriately setting the temperature, humidity and pause parameters, the machine can also be used to dry other types of products. The dryer is supplied with two trolleys with pirouetting wheels and 50 wooden frames for short pasta or, in alternative, with a trolley with canes for drying long pasta. The control card allows to modify the temperature and humidity parameters for each cycle of the drying program; it is also possible to memorize customized programs to be used based on the different drying needs. 7 basic recipes are already installed in the dryer (for doughs made from re-milled semolina and water) for the following formats: maccheroni/penne, fusilli, conchiglie/paccheri rigati, orecchiette, spaghetti, caserecce and nests. Any recipes for special formats or doughs can be made upon request by the pasta technician.

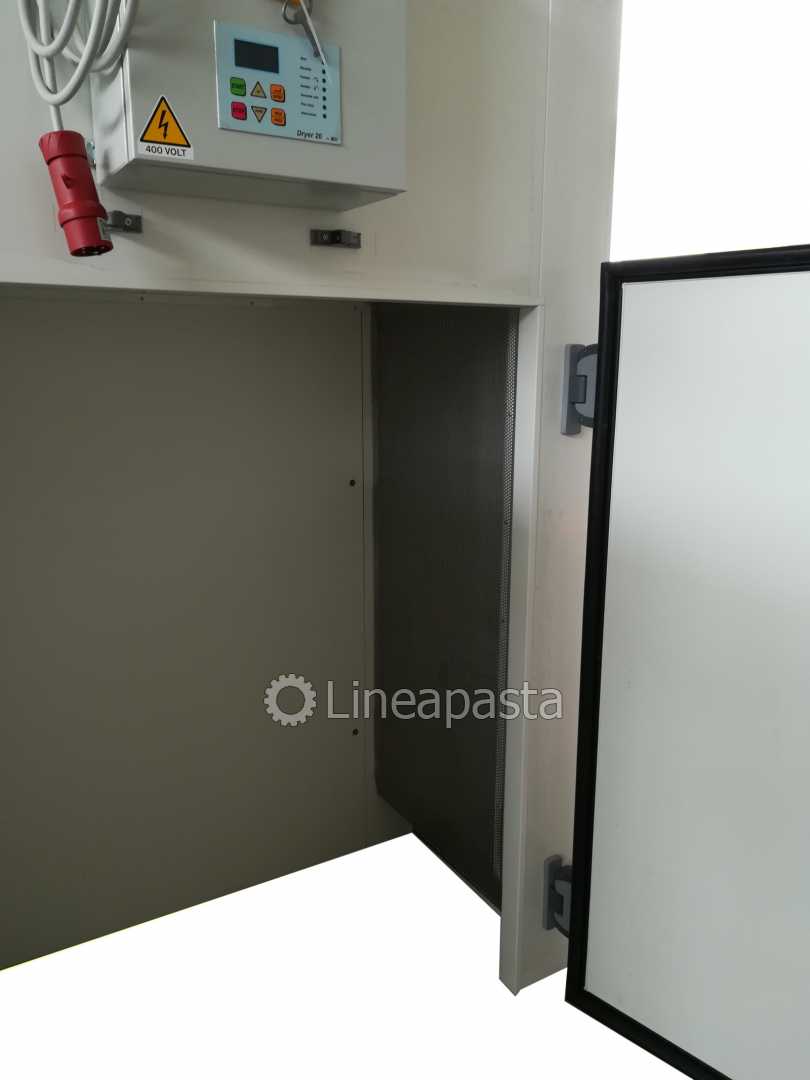

The EC 50 dryer is also equipped with a CNT function that allows the drying cycle to end when the set ambient humidity level is reached (it can be performed only after at least 8 hours of drying); in fact, the motorized valves allow the air characteristics to be maintained inside the dryer based on the setted parameters. The air is heated by armored stainless steel heating elements while the deflectors orient it on each frame to obtain a uniform flow and result. The electrical panel is CE compliant and is equipped with an end-of-drying program warning light.

Lineapasta provides together with the machines and only to its customers, a manual of use, maintenance and installation.


INCLUDED ACCESSORIES:

- 2 trolleys with 50 wooden frames for short pasta

OPTIONAL ACCESSORIES:

- Water batteries
- Additional trolley for short pasta with 25 frames
- Additional trolley with canes for long pasta


TECHNICAL DATA:

- Voltage: 380V/50Hz 3Ph - 220V/60Hz 3Ph

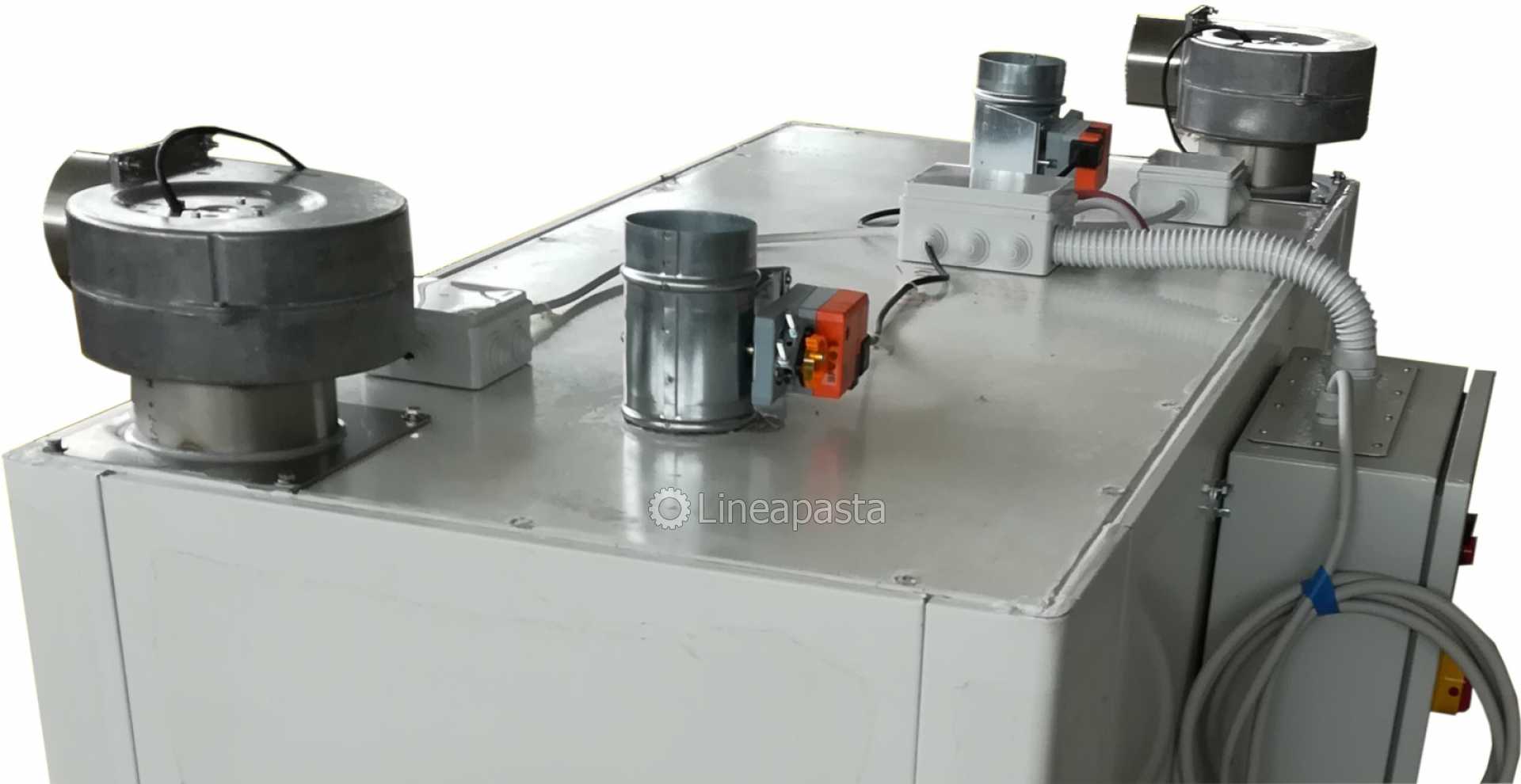

- Installed power: 8,9 kW (2 motorized fans 0,85 kW, 2 helical extractors 0,3 kW, 3 electric resistances 6,60 kW in total, 2 motorized butterfly valves)
- Temperature: 0° - 65°
- Nominal capacity: 200 kg/cycle
- Recommended capacity: 150 kg/cycle
- Trolley size: cm 60x120x13h
- Tray size: cm 60x120x5,5h
- Dryer dimensions: cm 167x150x226h + cm 25 extractors
- Weight: 300 kg
