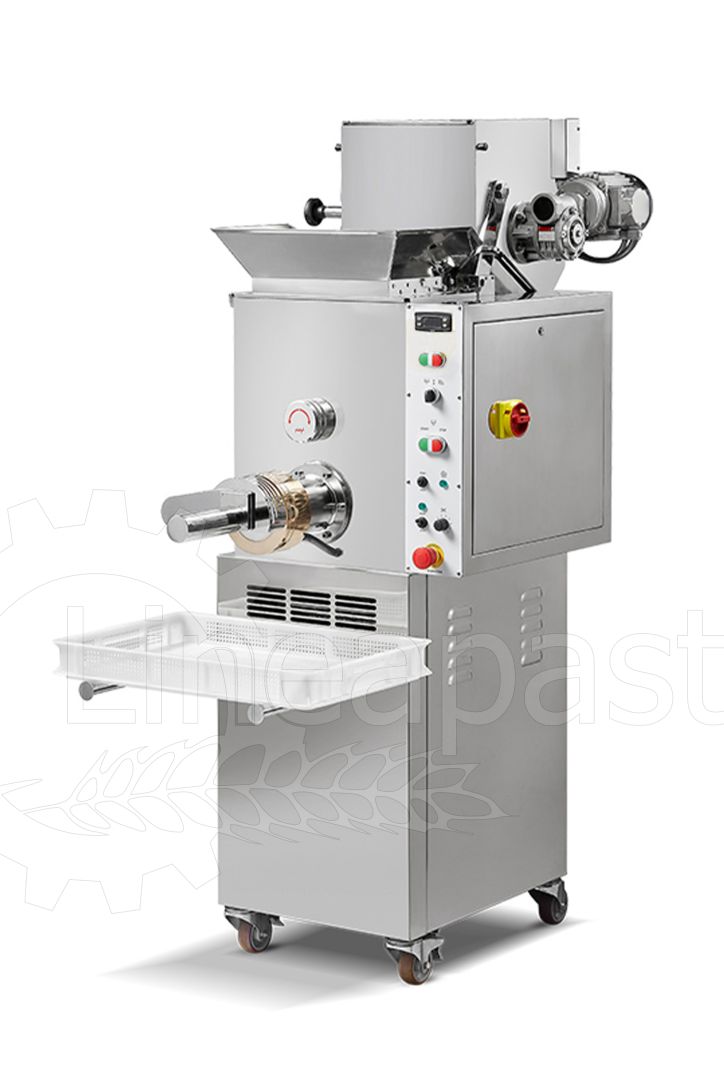

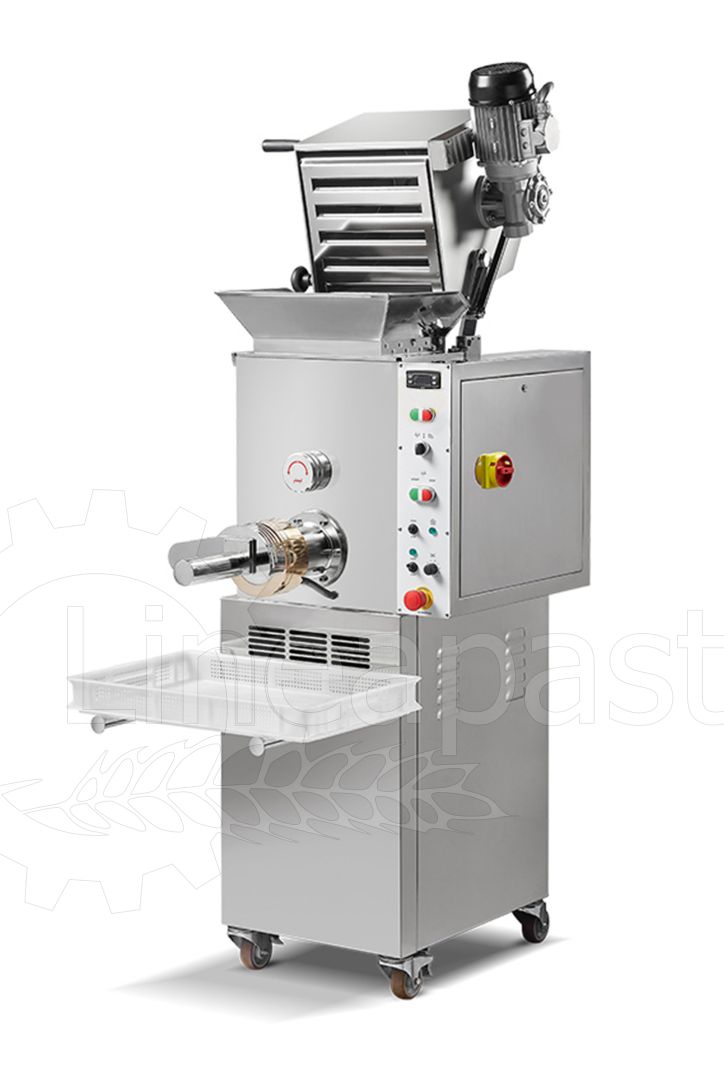

Double vat fresh pasta maker TRD 110/S

Available in 20/25 working days

You are here: Home > Extruders / Presses > Double vat presses > Double vat fresh pasta maker TRD 110/S

Included recipe book

Price:

€ 14.080,00

VAT excluded

Ask for information Estimate the delivery costs

Dies Frequently asked questions

Included recipe book

Description

The TRD 110/S double vat pasta machine is a machine for semi-industrial productions equipped with an extrusion kneading vat and a tilting kneading vat. This fresh pasta machine has an hourly production of 65 kg/h, it is equipped with a fan and an electronic cutter for short pasta. Thanks to the double vat, each with a capacity of 15 kg, it is possible to mix with one vat, until the second one extrudes, so as to have a continuous production. It is also equipped with a water cooling system that keeps the temperature of the extrusion cylinder low, this allows you to produce for several consecutive hours without having to stop production to wait for the cylinder to cool. The components in contact with the pasta are in stainless steel or bronze for food use, while the moving parts are mounted on ball bearings with long-life type seals.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.

TECHNICAL CHARACTERISTICS:

- Double vat
- Short cut pasta cutter
- Water cooling system
- Cooling fan
- Hopper
- 1 pasta tray

OPTIONAL ACCESSORIES:

- Dies to be chosen from the catalog
- Penne kit with special blade
- Fixed sheet extruder for combination RV 30 and RV 50
- Perforated pasta trays

Technical data

Voltage	380V/50Hz 3Ph - 220V/60Hz 3Ph
Power	1,75 + 0,55 kW
Vat capacity	15 + 15 Kg
Production capacity	65 Kg/h
Die diameter	Ø 109 mm
Dimensions	cm 63x120x165h
Package dimensions	cm 68x125x185h
Net weight	220 Kg
Gross weight	240 kg
