Double vat fresh pasta maker TRD 110

Available in 20/25 working days

You are here: Home > Extruders / Presses > Double vat presses > Double vat fresh pasta maker TRD 110

360

Electronic cutter
Electronic cutter
Water cooling system
Mixing and extruding vat
Tilting kneading vat
Hopper
Included recipe book

5/5 (1 Reviews)

Price:

€ 8.360,00

VAT excluded

Ask for information Estimate the delivery costs

Dies Product datasheet Frequently asked questions

Electronic cutter
Electronic cutter
Water cooling system
Mixing and extruding vat
Tilting kneading vat
Hopper
Included recipe book

Description

The TRD 110 double vat pasta machine is a machine for semi-industrial productions equipped with a tilting kneading vat and an extrusion kneading vat. This fresh pasta machine has an hourly production of 34 kg/h. Thanks to the double vat, each with a capacity of 15 kg, it is possible to mix with one vat, until the second extrudes, so as to have a continuous production. It is also equipped with a water cooling system that keeps the temperature of the extrusion cylinder low, this allows you to produce for several consecutive hours without having to stop production to wait for the cylinder to cool. The TRD 110 is equipped with a fan and an automatic knife for short pasta.
The components in contact with the pasta are in stainless steel or bronze for food use, while the moving parts are mounted on ball bearings with long-life type seals.

The purchase of the trolley is strongly recommended.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

TECHNICAL CHARACTERISTICS:

- Double vat
- Short cut pasta knife
- Water cooling system
- Cooling fan
- Hopper
- 1 pasta tray

OPTIONAL ACCESSORIES:

- Pasta trolley (Height 570 mm)
- Dies to be chosen from the catalog
- Penne kit with special blade
- Fixed sheet extruder for combination RV 30 and RV 50

Technical data

Voltage	380V/50Hz 3Ph - 220V/60Hz 3Ph
Power	1,5 kW + 0,55 kW
Vat capacity	15 + 15 Kg
Production capacity	34 Kg/h
Die diameter	Ø 109 mm
Dimensions	cm 56x105x95h
Machine + trolley dimensions	cm 56x105x152h
Package dimensions	cm 66x110x110h
Net weight	200 Kg
Gross weight	240 kg

accessories

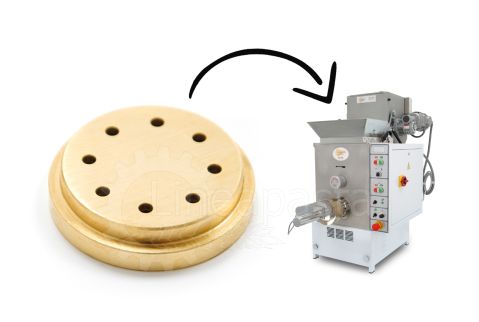

TRD 110 Dies

(To be evaluated)

Die diameter: Ø 109 mm

Available in 20/25 working days

€ 240,00

Add to cart Ask for information
