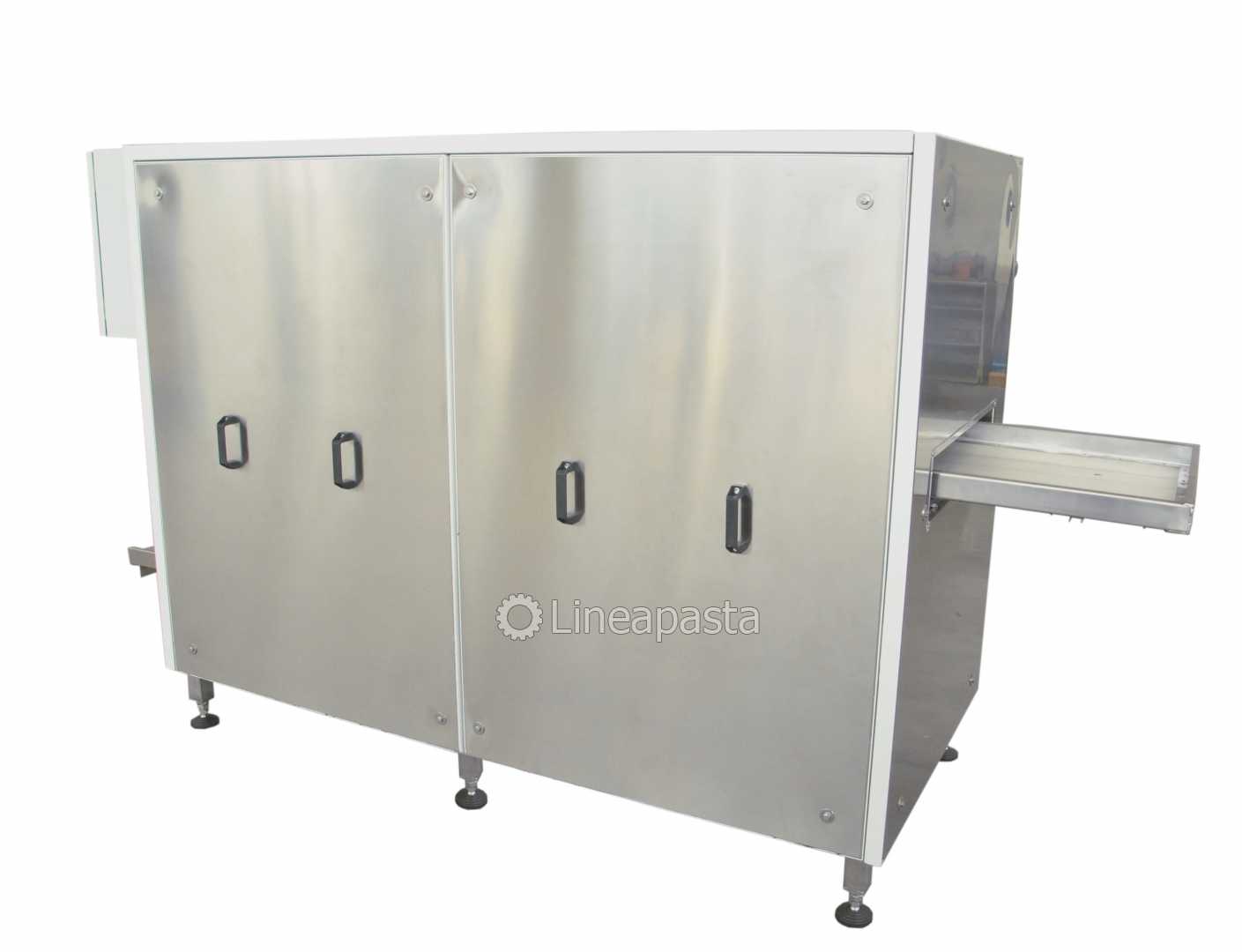

Trabatto for short cut pasta TB 300

The TB 300 short pasta shaker is a machine for pre-drying and uniform separation of fresh pasta. The shakers for the treatment of alimentary pasta type TB 300 are machines of new conception with high productivity. Axial ventilation with AIR BOX with improved efficiency. The TB 300 can treat approximately 300 kg/h of fresh product, depending on the dough size and the vibration speed.

OPERATION:

The paste just extruded from the press is conveyed into the upper loading frame which, together with the intermediate frames and an adjustable intensity vibrator unit, provides for the first separation treatment of the same. The hot air necessary for the drying process is provided by two axial electric fans and is heated by a battery of electric resistances. By adjusting the length of time the product remains in the system, by varying the intensity of the vibrations, a loose and dry product is obtained at the exit of the lower frame.

TECHNICAL FEATURES:

- Main structure on adjustable feet in tubular stainless steel AISI 304, complete with quick removable panels in sandwich panels composed of aisi 304 stainless steel sheet, 1 mm thick, scotch brite finish, high density hot injected polyurethane, thickness 1 mm stainless steel sheet, thermal break with food grade PVC profile on the thickness, front panels in stainless steel;
- N° 07 vibrating planes width 600 mm with bottom of stainless steel AISI 304;
- N° 01 0.55 kW motor on slide with variable pulley for vibration intensity adjustment;
- N° 03 axial fans for internal air movement of 0.3 kW each;
- N° 01 10,8 kW thermoresistance battery on 9 elements;
- Electrical cabinet system according to the current regulations in force C.E.; motors and equipment 380 V, 50 HZ, low voltage auxiliaries 24 V;
- Overall dimensions approximately 3300 mm overall length, approximately 1050 mm wide, approximately 1600 mm high.

OPTIONAL ACCESSORIES:

- Pause/work on floors vibration
- Manual humid air extractors or controlled by humidistat
- Number of plans modifiable from 4 to 6
- Passage of frames
- Heating hot water batteries
- Vibration inverter
- Increased resistance
- Customized sizing
- Trabatti for automatic systems with frame passage and frame jumping device.

TECHNICAL DATA:

- Motor power: 0.55 kW
- Power supply: 380V/50Hz 3Ph - 220V/60Hz 3Ph
- Fan power: 0.3 kW each
- Battery power: 10,08 kW on 9 elements
- Maximum absorbed power: 13 kW
- Capacity: up to 300 kg/hour of pasta
- Vibrant top dimensions: 60 cm width
- Dimensions: cm 330x105x160h
- Weight: 600 kg
