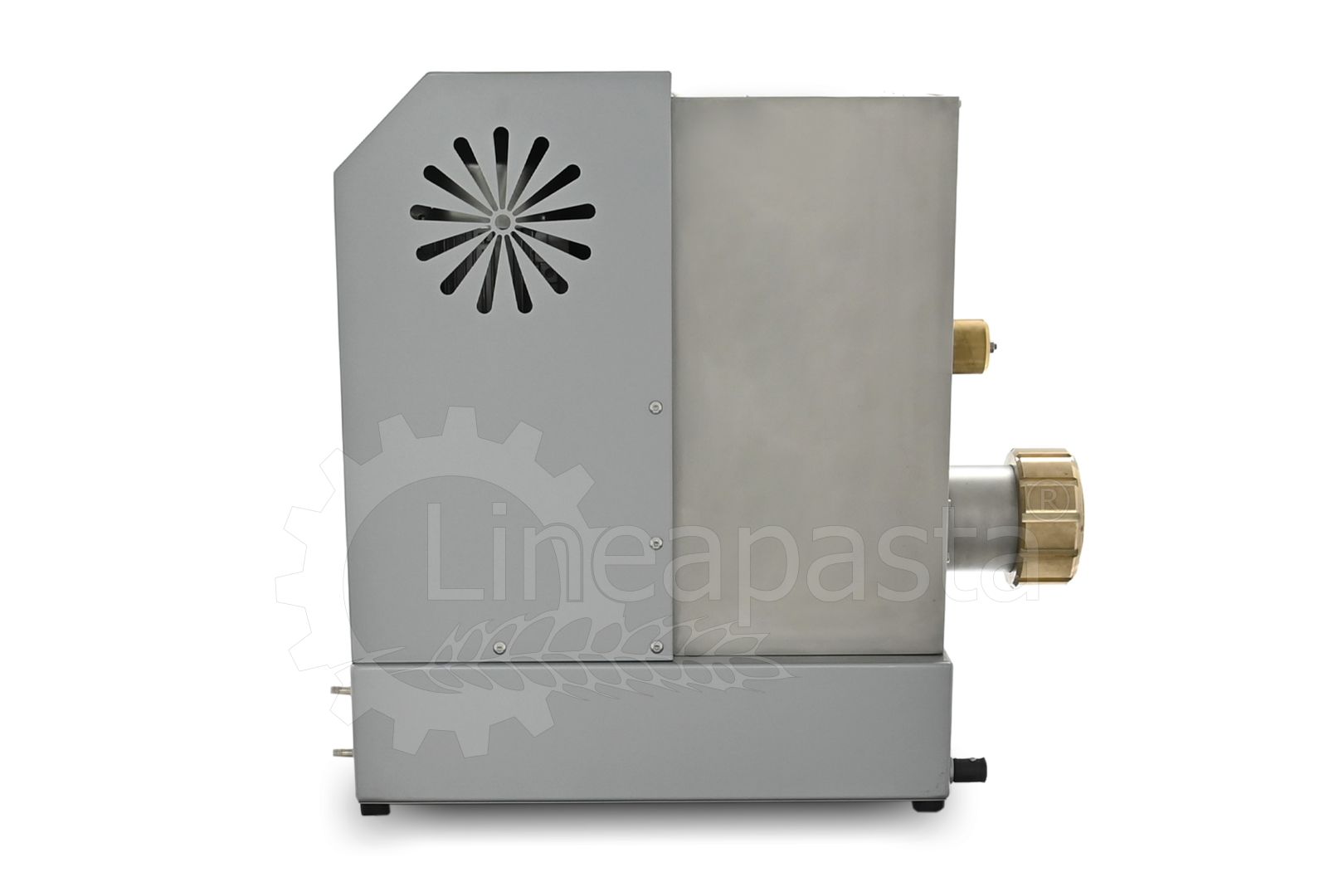

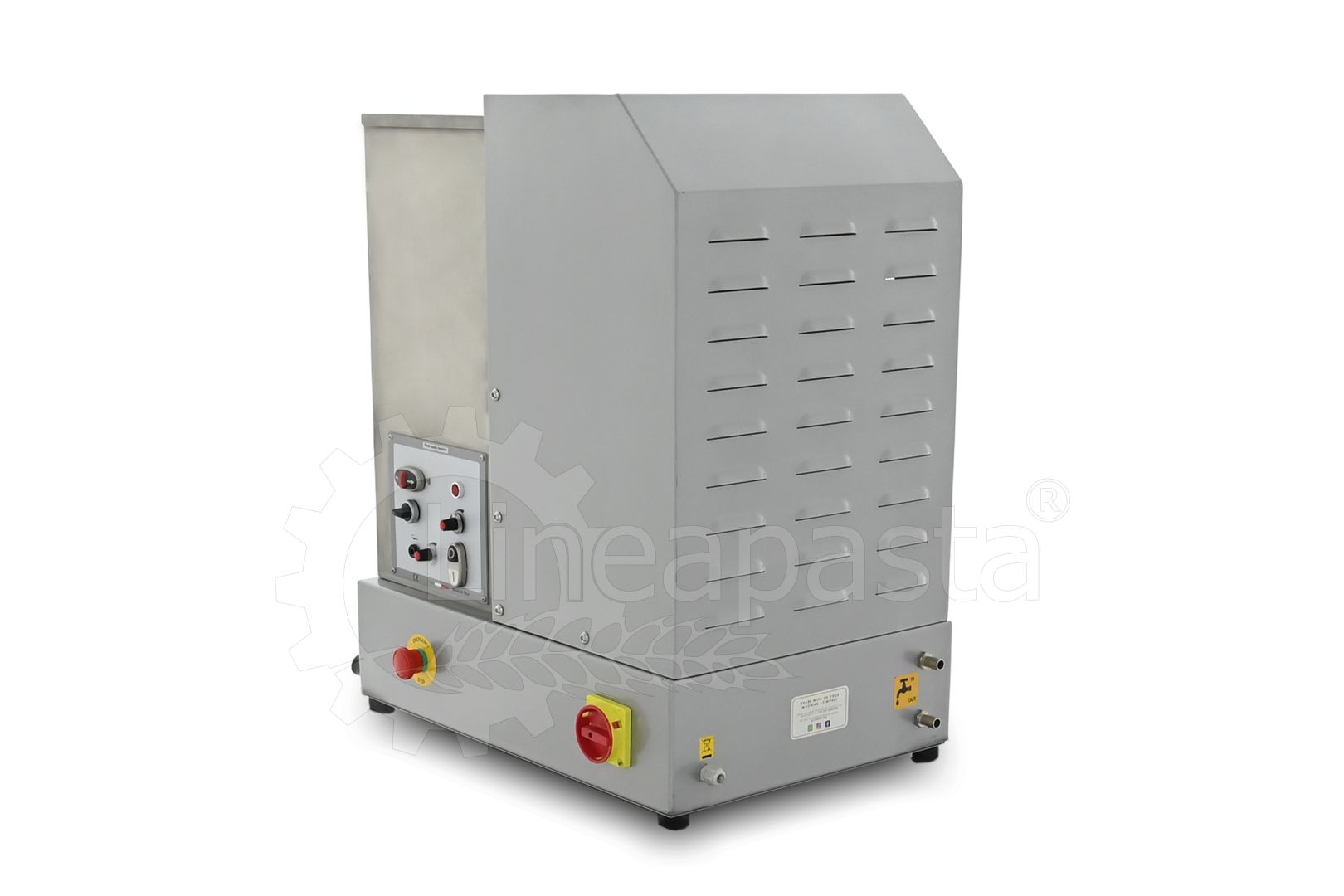

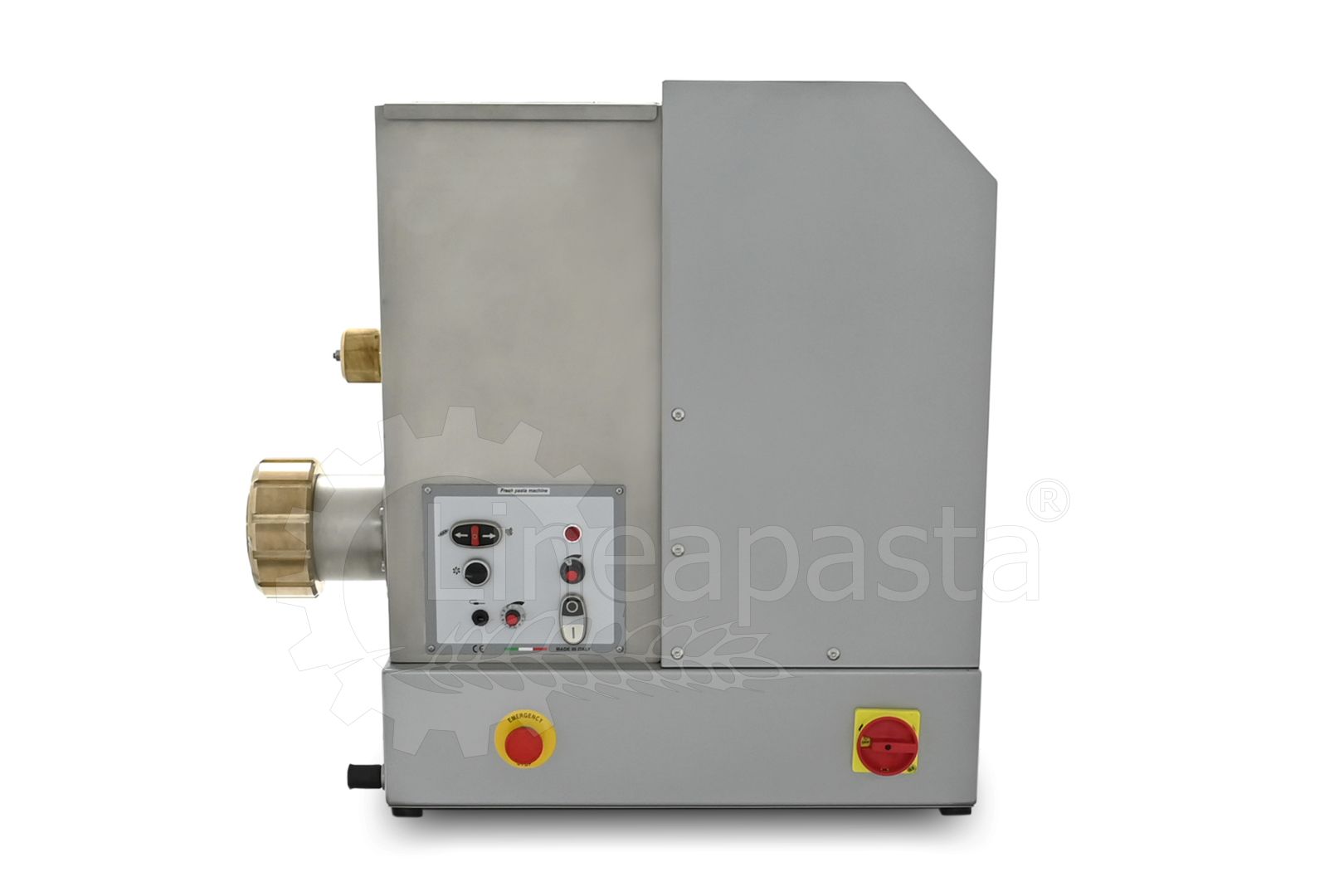

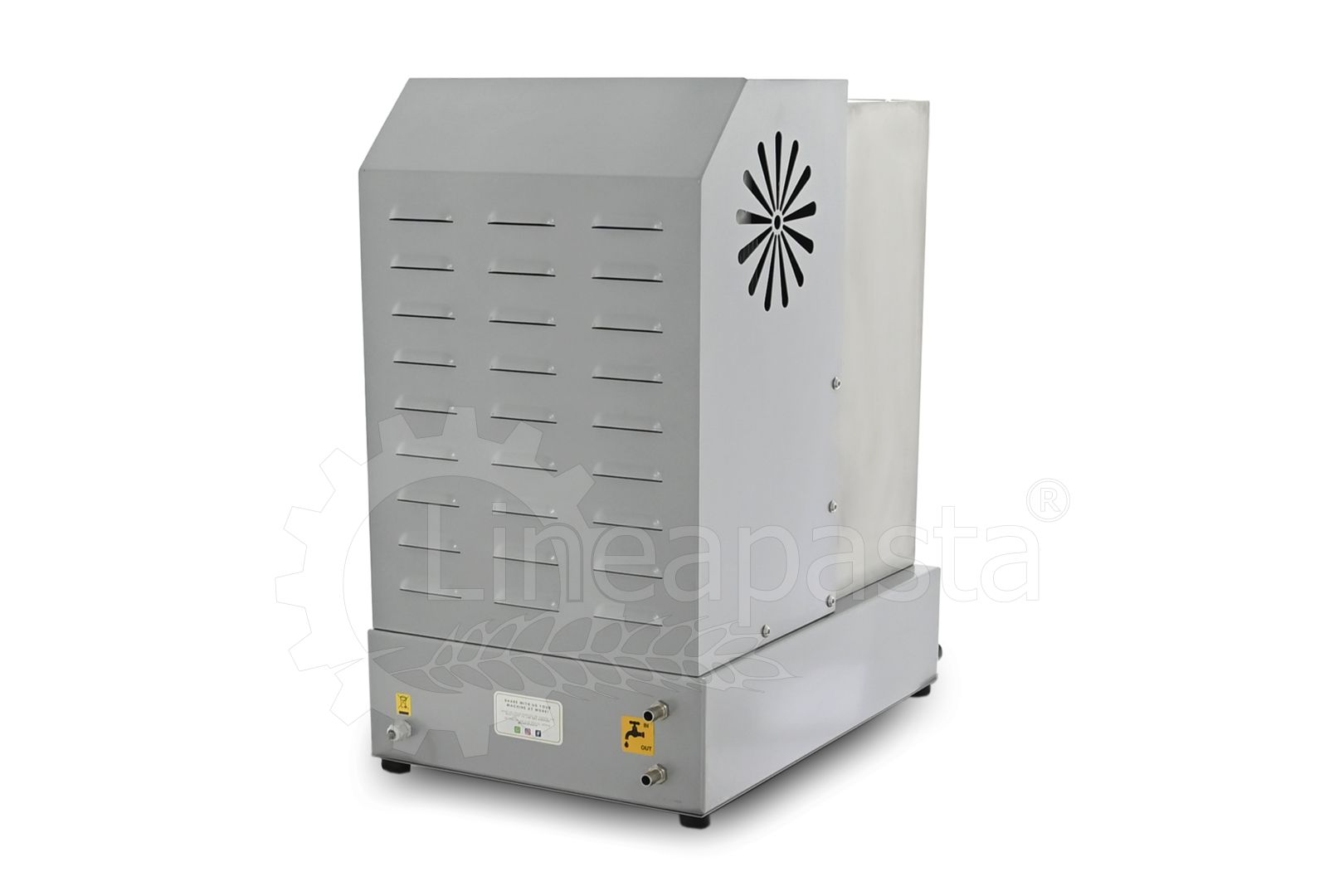

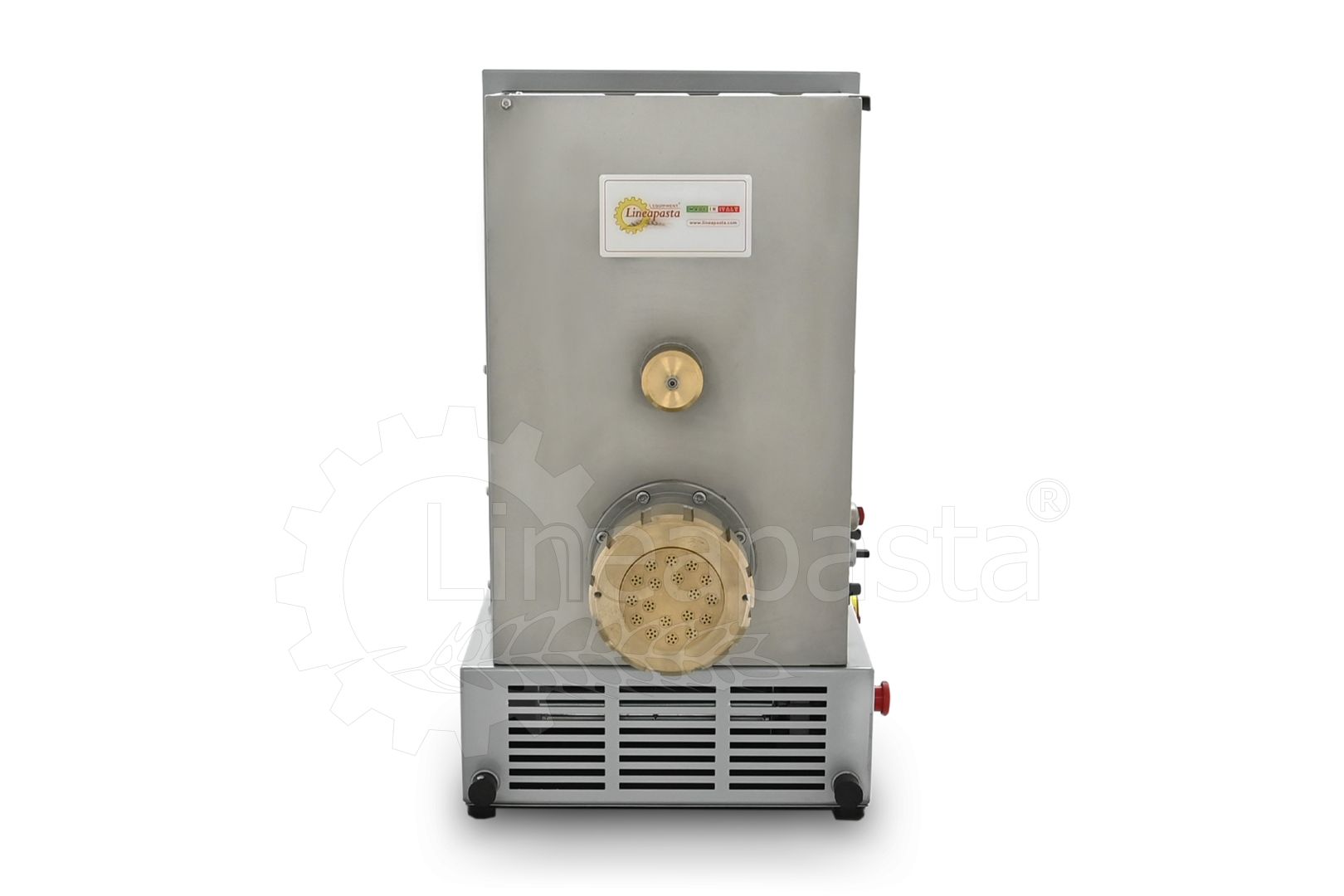

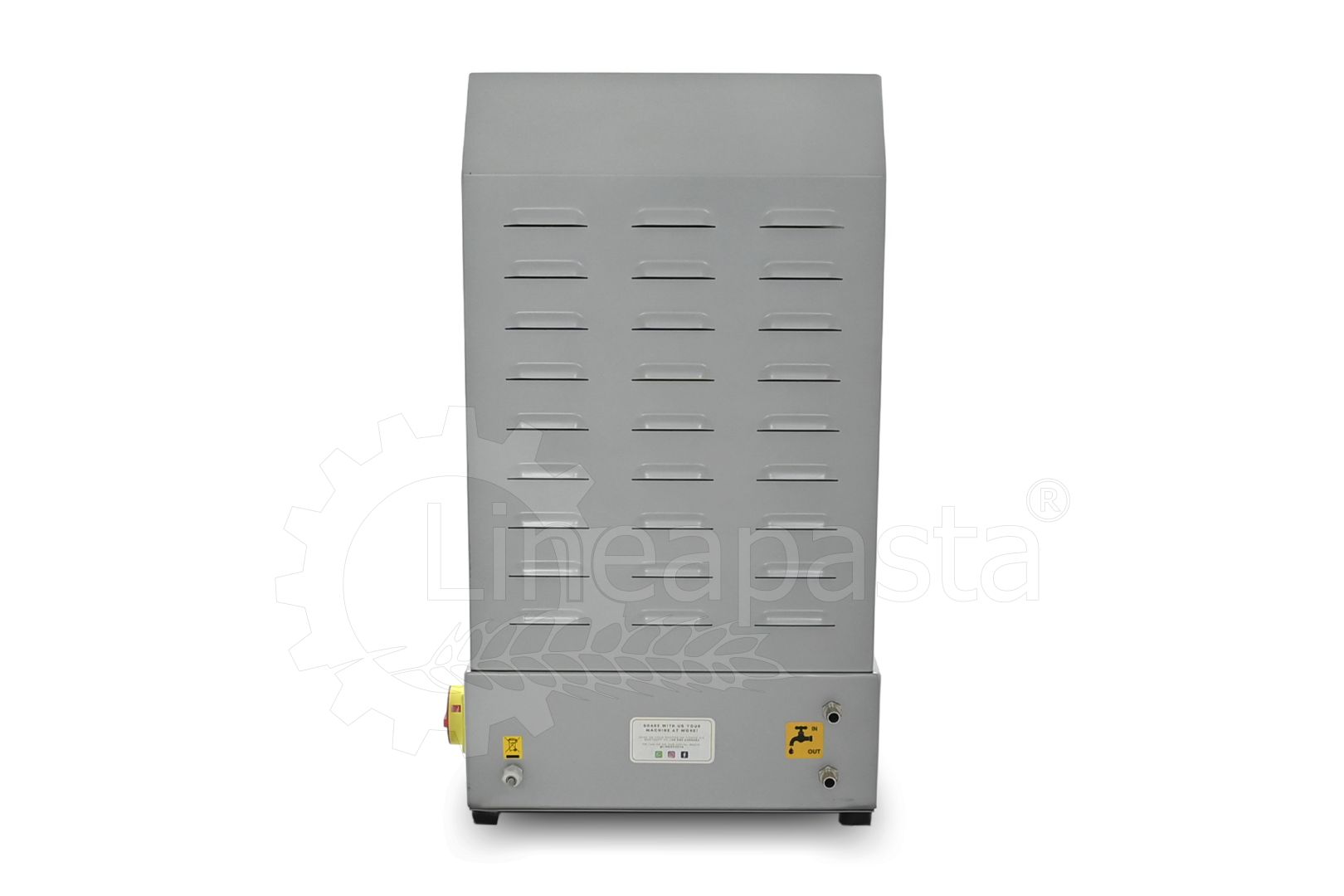

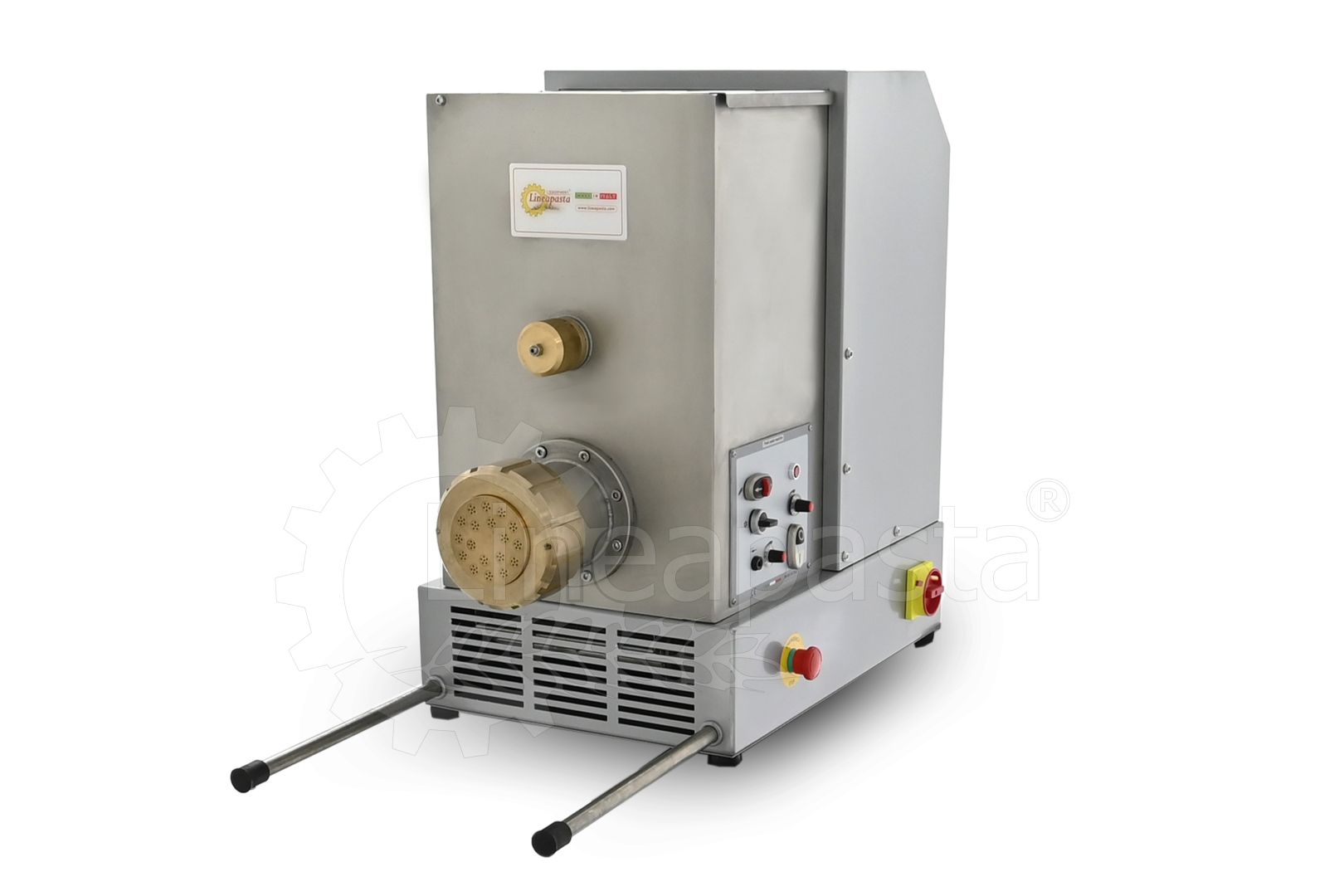

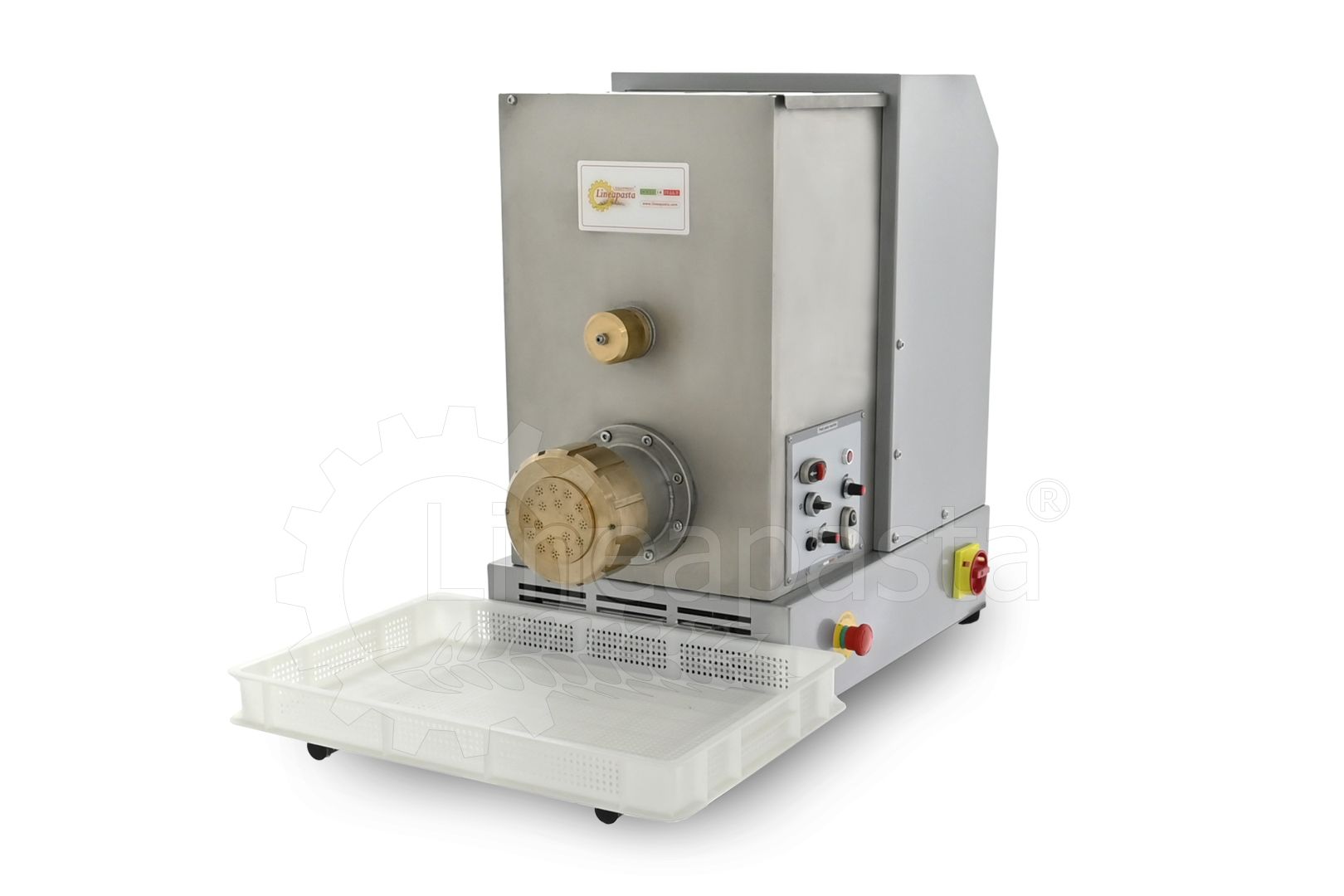

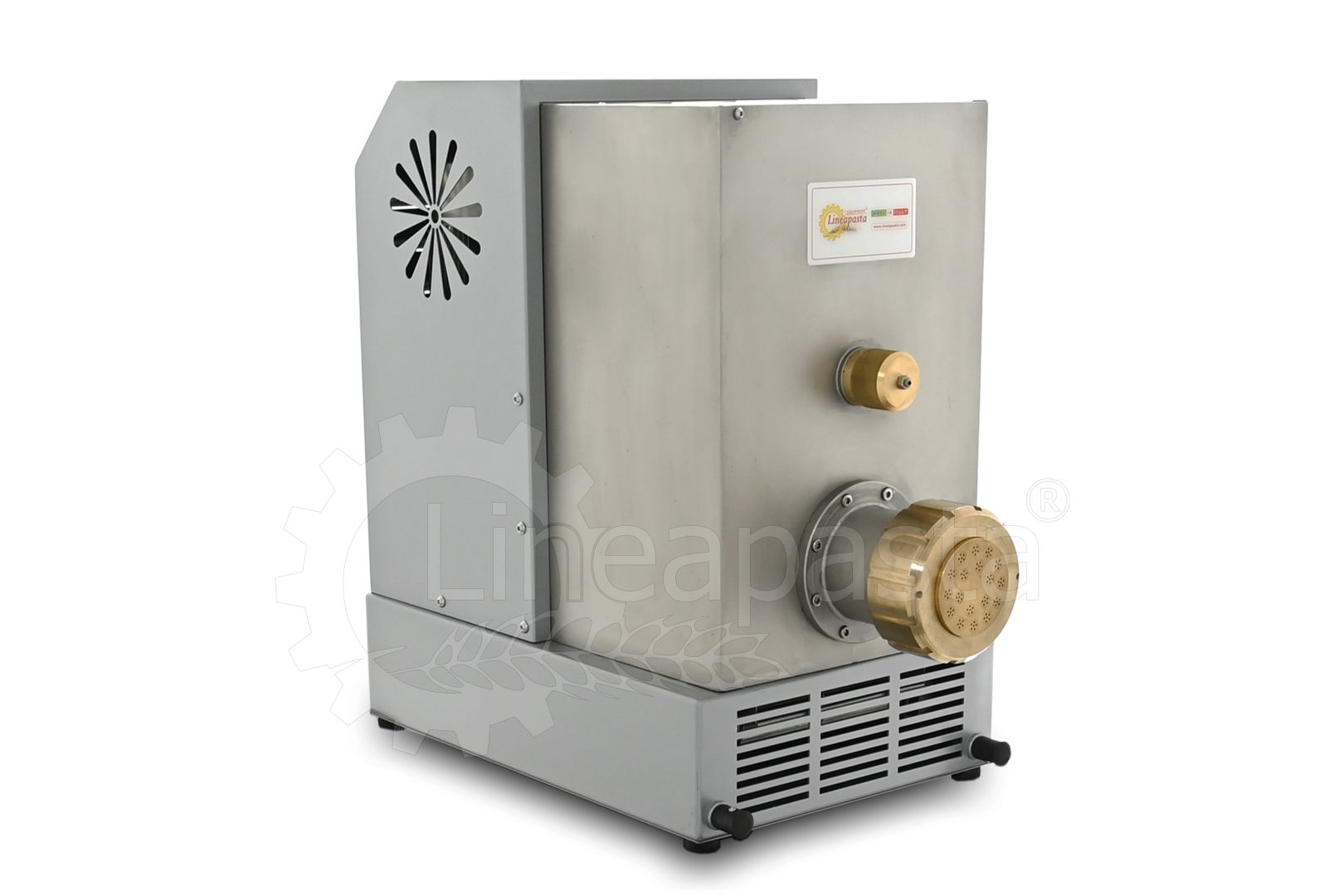

PV 10 fresh pasta machine

Name: PV 10 fresh pasta machine
Brand: Lineapasta
Price: 5890 EUR
Availability: BackOrder

Available in 20/25 working days

You are here: Home > Pasta maker > Extruders / Presses > Presses above 5kg vat > PV 10 fresh pasta machine

With electronic cutter for short pasta
With electronic cutter for short pasta
Water cooling system
Closed circuit chiller for pasta machines
Included recipe book

Price:

€ 5.890,00

VAT excluded

Ask for information

Add to cart Estimate the delivery costs

Dies Product datasheet Frequently asked questions

With electronic cutter for short pasta
With electronic cutter for short pasta
Water cooling system
Closed circuit chiller for pasta machines
Included recipe book

Description

The PV 10 is a fresh pasta machine with a generously sized vat, recommended for artisanal pasta makers, restaurants, agritourism businesses and delicatessens looking to produce large quantities of pasta per cycle. The pasta machine features a painted steel mixing vat that can hold up to 15 kg of dough (flour + liquids) and a spiral bronze screw that ensures the extrusion of perfectly blended and homogeneous dough, for an hourly production of approximately 30 kg. To ensure efficient operation even during repeated production cycles, the machine features a built-in water cooling system that ensures a constant extrusion temperature during extended periods of use, and a ventilation system that allows the surface of the freshly extruded pasta to dry. The screw and mixing shaft are easily removable, allowing for quick and easy cleaning after each use. This model is built in compliance with current health and safety regulations.
Purchasing the trolley is strongly recommended.

The machine includes an electronic cutter for short pasta and a 1,5 mm brass-bronze die for spaghetti (additional dies must be purchased separately).

Please note that the electronic cutter for short pasta cannot be used with certain dies: special shapes that require a clean cut with the scraper or shapes with a central extrusion insert.

Lineapasta provides its customers with a user guide and a paper pasta recipe booklet for use with our professional machines, created by our pasta technician.

TECHNICAL CHARACTERISTICS:

- Painted AISI 304 stainless steel vat
- Bronze-aluminum alloy screw
- Water-cooled cylinder
- Fan for drying the pasta surface

OPTIONAL ACCESSORIES:

- Brass-bronze dies for producing the required type of pasta depending on the chosen shape
- Reinforced stainless steel trolley
- Closed circuit chiller for pasta machines
- Perforated pasta trays
- Pasta cutter scraper

Technical data

Voltage	220V/50Hz 1Ph - 110V/60Hz 1Ph - 380V/50Hz 3Ph
Power	1,8 kW
Vat capacity	15 Kg
Production capacity	30 kg/h
Die diameter	Ø109 mm
Dimensions	cm 46x83x78h
Machine + trolley dimensions	46x83x147h cm
Package dimensions	cm 63x89x160h
Net weight	145 Kg
Gross weight	173 kg

accessories

PV 10 Dies

Die diameter: Ø 109 mm

Available in 20/25 working days

€ 280,00

Add to cart View product

Closed circuit chiller for pasta machines H50-500 - Labtech

Dimensions: cm 25x48x50h

Capacity: 2,5 Lt.

Available in 20/25 working days

€ 1.998,00
