Static refrigerated double door cabinet with off cycle defrosting GN1200

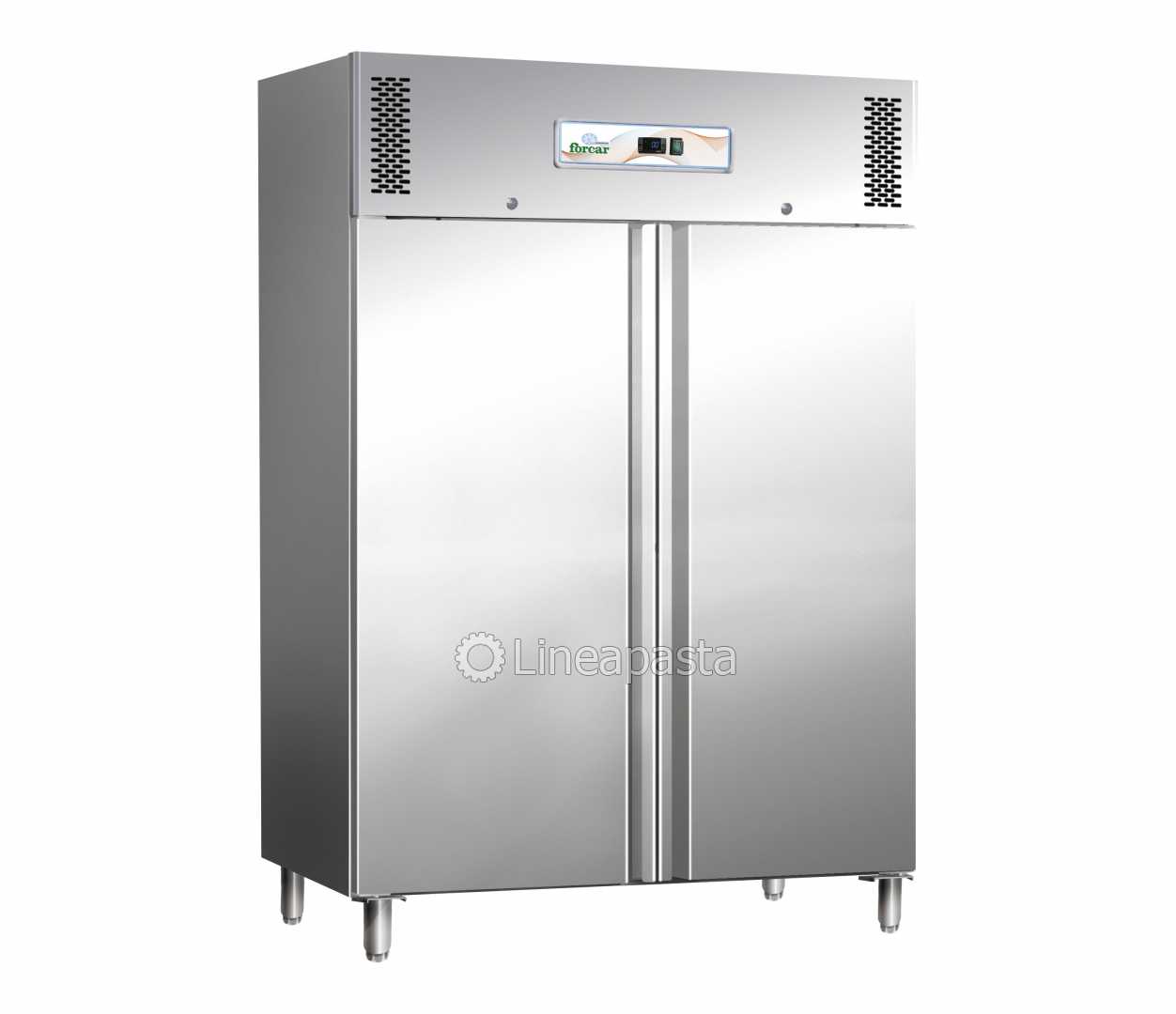

• Model GN1200TN/BT

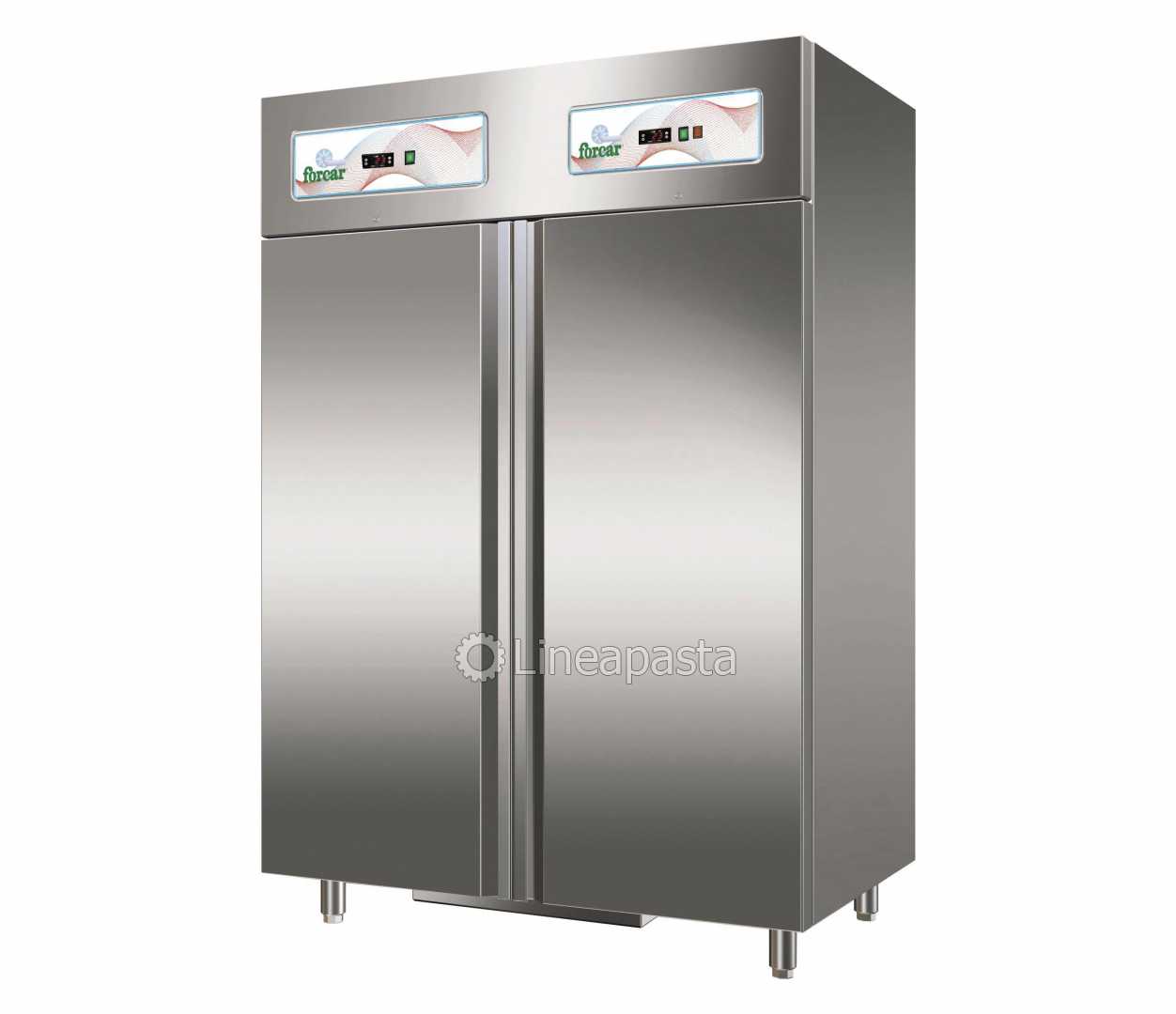

• Model GN1200DT

Static refrigerated double door cabinet with off cycle defrosting GN1200 available in GN1200TN, GN1200BT and GN1200DT models built in AISI 304 stainless steel. Equipped with fan and internal air conveyor to uniform the temperature, group incorporated in the upper compartment and engine compartment with insulated sides. The temperature is controlled electronically by means of a digital thermostat. There is an electrical resistance around the door frame to eliminate condensation (the elimination of condensation water takes place via a collection tank). The door is equipped with a return spring, lock with key and removable seal without the use of tools. The corners of the bottom are rounded, the external panels of the bottom and the back are made of galvanized sheet metal and the feet are in AISI 304 stainless steel adjustable in height.

An optional adaptation kit for containing cm 60x40 grids is available for the DT model only.


OPTIONAL ACCESSORIES:

- Pair of guides for grill
- Plasticized grid
- Kit 4 wheels ø 120 mm (2 of which with brake)
- Supports kit and 9 pairs of tray guides (DT model only)

TECHNICAL CHARACTERISTICS:

- Working temperature: +2°C / +8°C (TN) | -18°C / -20°C (BT) | both in the DT model
- External dimensions: cm 134x80x201 (TN e BT) | cm 134x83x201 (DT)
- Internal dimensions: cm 122x65,3x138,6 (TN e BT) | cm 56x53x138,6 + 56x53x138,6 (DT)
- Capacity: 1104 L (TN and BT) | 552 + 552 L (DT)
- Maximum working temperature: +32°C, 55% HR
- Type of refrigeration: static
- Type of defrost: parked
- Type of refrigerant gas: R290
- Condensate water evaporation: collection tank
- Temperature control: electronic
- Insulation: 60 mm
- Absorption: 450 W (TN) - 710 W (BT) - 260/510 W (DT)
- Voltage: 220V/50Hz 1Ph
- 6 grids + 6 pairs of guides supplied
- Energy class: B (TN) - D (BT)
- Net weight: 180 kg - 195 kg (DT)
- Gross weight: 204 kg - 219 kg (DT)
- Packaging dimensions: cm 137x84x218 (TN e BT) - cm 137x87,5x216 (DT)
