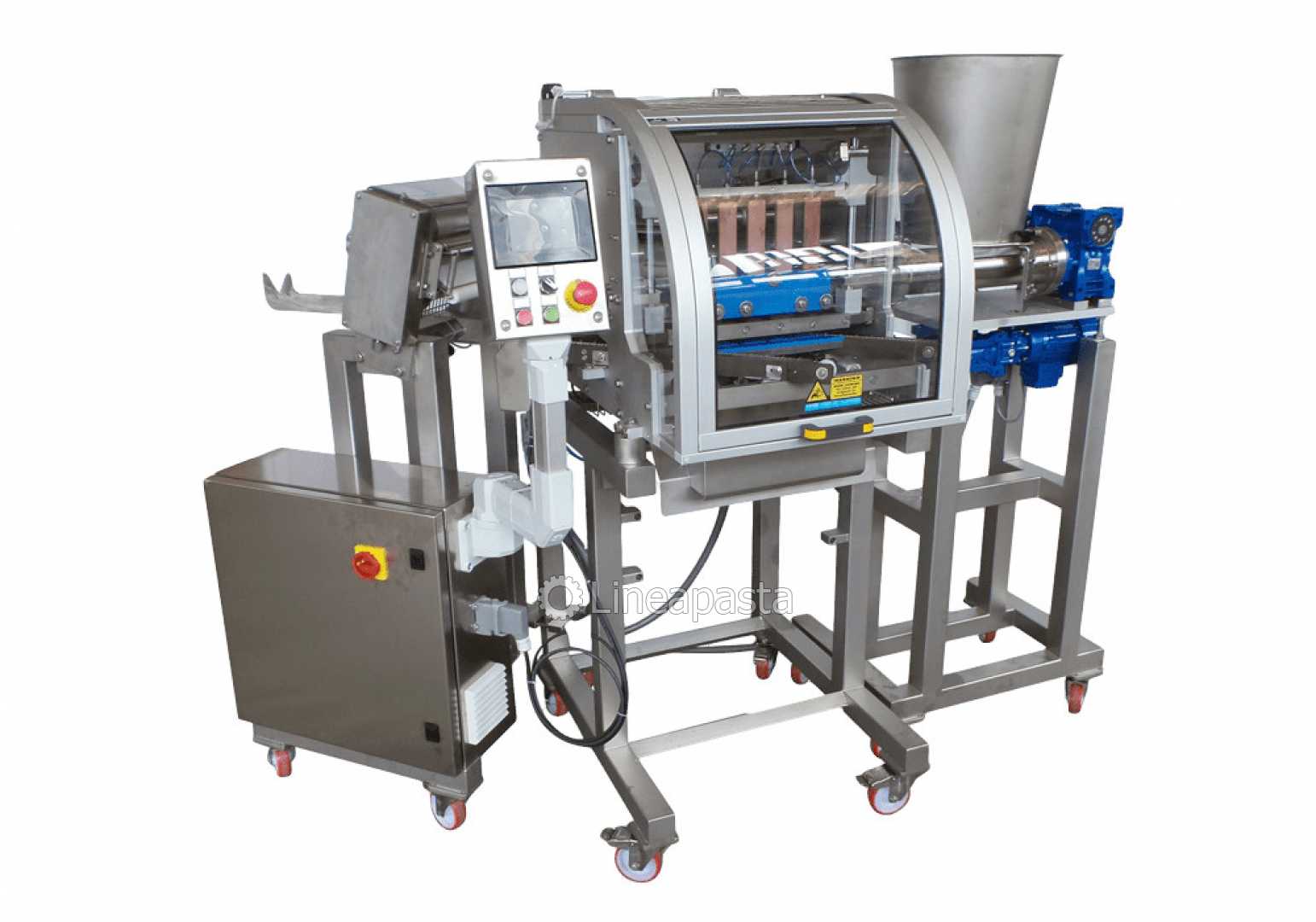

Automatic forming machine for tortellini and cappelletti FK 250

The FK 250 is an automatic forming machine designed for the production of tortellini, tortelloni, cappelletti and cappellacci. The particular automatism of the tortellinatrice is able to reproduce exactly the closing of the tortellino as that carried out by the "sfogline emiliane". Easy to use, can be sanitized quickly. Thanks to an innovative solution, it allows to obtain a greater workable surface, equal to 93% of the dough. The machine can also be easily integrated into a medium-sized production system. All parts in contact with the dough and the filling are made of stainless steel or non-toxic materials, suitable for food use.

The forming machine is composed of three functional groups:
- the pulp or calibrator rolling unit
- the filling system
- the cutting and forming group.


TECHNICAL DATA:

- Regulations applying: CE
- Sound emission level: < 80 dB (A)
- Functioning: electromechanical
- Operators required: 1
- Engine voltage: 380V/50Hz 3Ph
- Voltage tolerance: +/- 5%
- Neutral: No
- Auxiliary voltage: 24 Volts c.c.
- Installed power: 2,3 kW
- Pressure: 5 ÷ 6 bar
- Air consumption: 10 Nl/min.
- Dimensions: cm 228x158x168h
- Total weight of the machine: 700 kg
- Water: not necessary
- Lubrication: manual with grease

CALIBRATION:

- Sheet width: 250 mm
- Calibration adjustment: also for fine sheets
- Hourly production: 130 kg/hour

FILLING:

- Feeding System: Screw Type
- Filling quantity adjustment: external, continuous
- Dosing adjustment: single figure
- Minimum load: 10 kg

PRODUCTION PER HOUR:

- Tortellini 2-4-6 grams: 70-125 kg/h
- Tortelloni 14-26 grams: 150-210 kg/h
- Cappelletti 4-12 grams: 100-150 kg/h
