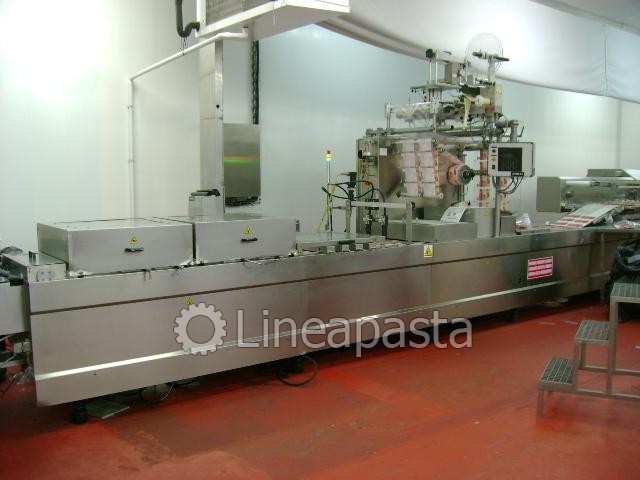

Thermoforming tool Tiromat Powerpack 660
Price:
€ 37.500,00
VAT excluded
We deliver worldwide
- Condition: Second hand
- Guarantee: Not included on price
- Year of build: 1995
- More informations: Assembled
Description
Thermoforming
Brand: Tiromat
Model: Powerpack 660
Series No.: 661125-95
Formats:
The machine is capable of working with 2 formats
Length of 420 mm. avnace
Measures of containers:
Format 2.2 (Maxi) 216, 5 x 215 mm.
Format 2.3 216,5 mm x 143,3.
Formed:
-Length of the estaicon of formed: 1300 mm.
-Maximum depth of formed: 55 mm.
-Variable speed for the advancement of the film
Film:
Top film
-Film width: 470 mm.
-Flexible or semi-rigid
-Thickness: 60 microns
Bottom film
-Width of film: 464 mm.
-Flexible or rigid
-Thickness: 80-350 microns
The film collection is performed by a motorized vacuum cleaner
Vacuum:
-By means of side nozzles gas injection system to make vacio-gas in the different formats.
-20 Liters for gas tank
-Control of vacio-gas individually controlled by pressure switch, with vacuum contact device
Photo:
1 Photocell: Mark Visolux
1 Photocell: Mark Keyence
Cutters:
-Length of cutting station: 3100 mm
-4 transverse rigid film cutters
-4 transverse cutters of flexible film
1 longitudinal cutter, 3 circular blades, for flexible and rigid.

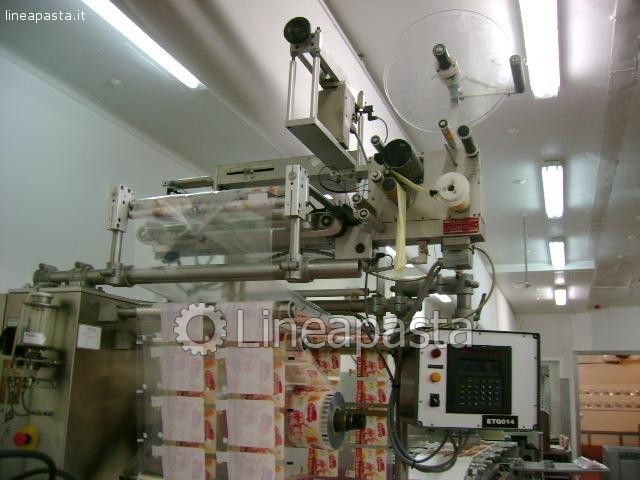

Labelling: Mark Koch
machine working until 1413
Located in Burgos (Spain)
