Pasta packaging machine
Ad #66
See all ads from SMCSRL
Lineapasta offers free shipping throughout Europe for this equipment but avails himself of the possibility to charge part of the shipment if the destination is found to be outside the traditional delivery circuits or of excessive economic relevance.
- Price€ 43.200,00VAT excluded
We deliver worldwide
Contact
Important: this ad is no longer available because already sold or not for sale anymore. We invite you to visit our website to find any similar equipment.
Enter the delivery address to calculate the shipping costs and proceed with the purchase
- Condition: N e w
- Guarantee: 12 months warranty
Information

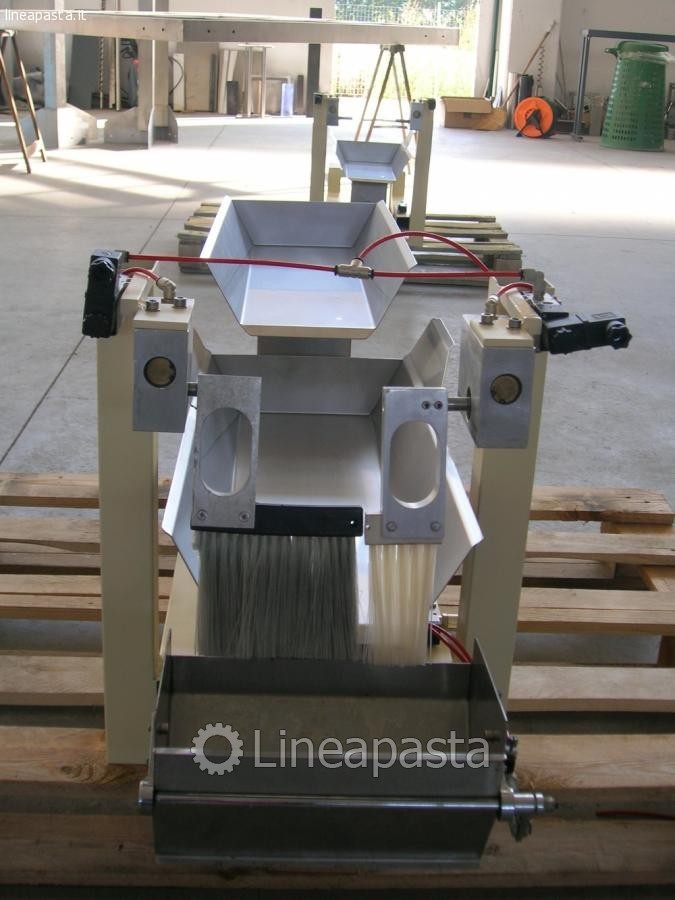

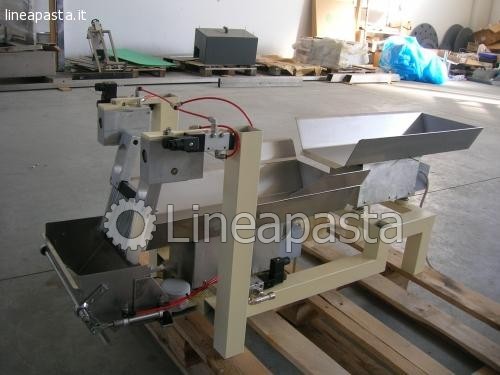

SCALE-linear 4-channel full of vibrant support structure, vertical packaging machine for linear s3e bags from a single reel of film, a discharge conveyor, rotary table, marker and photocell.
WEIGHING THE SMC is intended for the metering of powders, granules, crystals (grains, sugar, salt, pasta, tea, coffee and so on.), And similar products.
Equipped with support frame and mounting surface bags.
Parts in contact with product in stainless steel AISI 304.
The technical characteristics:
- Ability to mechanical production: measured about 30 per minute * based on the amount of product for each dose.
- Range of dosing: 10 to 1000 gr.;
- Capacity of hopper: 0.08 m3
- Power: 0.25 Kw
- Dimensions: 900 x 540 x 530 mm (570 / 2200 mm with stand)
- Weight: cc. 35 kg (75 kg with stand)
- Sound level: cc. 80 dB.

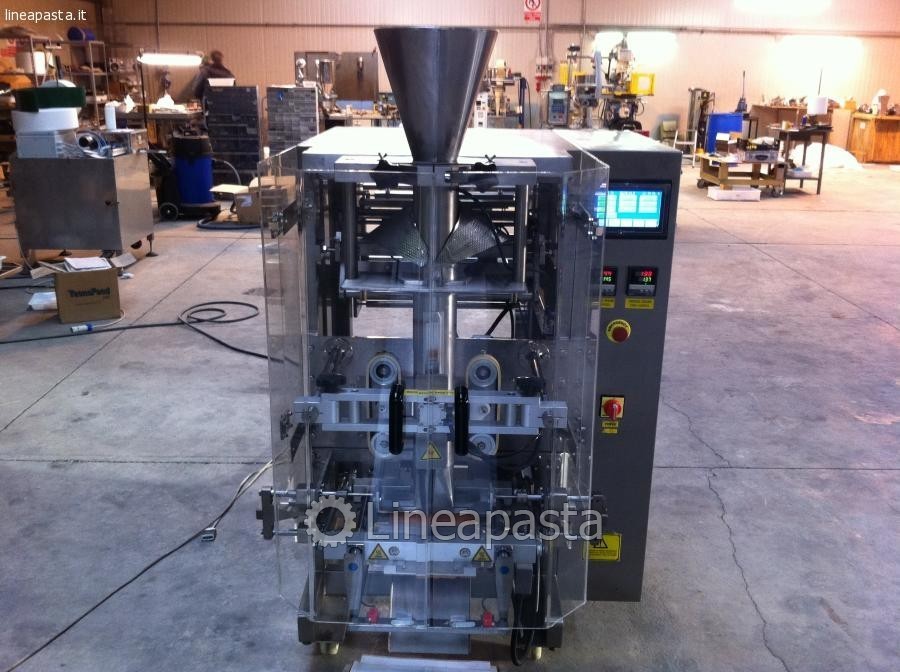

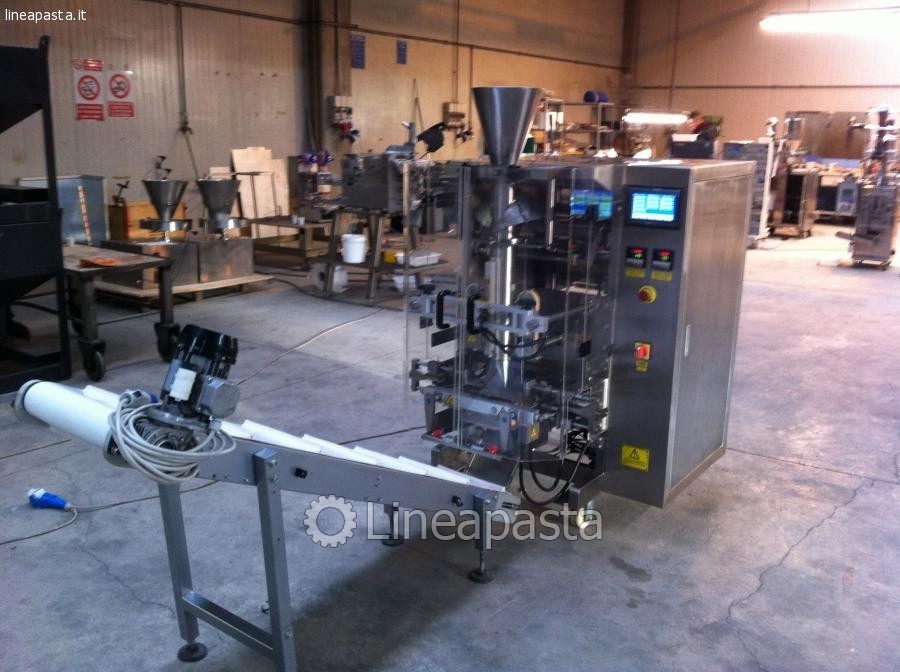

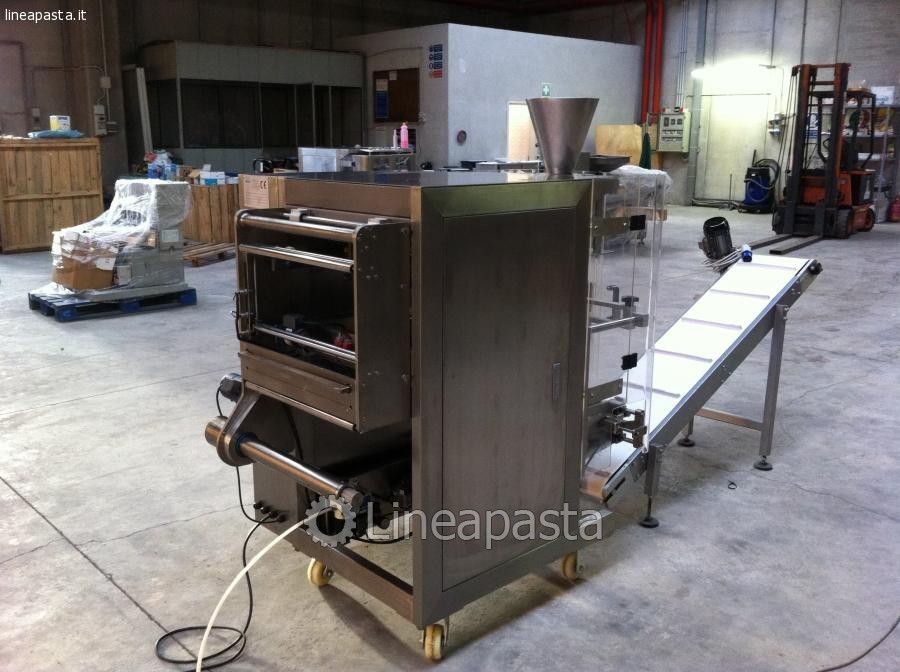

VERTICAL PACKAGING AND THE 'COMPLETE:
MOTORIZED DOOR WITH SINGLE COIL MOUNTING BOARDS;
CIRCUIT OF A ROLLER WINDER CENTERING MACHINE on axis;
FILM BY MOTORIZED DRIVE strap CLOSING ON AIR HOSE
COMPLIANCE WITH PRESSURE CONTROL OF PRESSURE;
WELDING ROD WITH LONGITUDINAL AIR OPERATED AND RESISTANCE PROBE;
CROSS-CUTTING AND WELDING BARS WITH CUTTER BUILT;
TEMPERATURE CONTROL OF HIGH-PRECISION;
MOTORS AND ELECTRICAL PLC WITH LCD SCREEN AND
CERTIFICATE OF CONFORMITY
MANUAL INCLUDED
WEIGHING THE SMC is intended for the metering of powders, granules, crystals (grains, sugar, salt, pasta, tea, coffee and so on.), And similar products.
Equipped with support frame and mounting surface bags.
Parts in contact with product in stainless steel AISI 304.
The technical characteristics:
- Ability to mechanical production: measured about 30 per minute * based on the amount of product for each dose.
- Range of dosing: 10 to 1000 gr.;
- Capacity of hopper: 0.08 m3
- Power: 0.25 Kw
- Dimensions: 900 x 540 x 530 mm (570 / 2200 mm with stand)
- Weight: cc. 35 kg (75 kg with stand)
- Sound level: cc. 80 dB.
VERTICAL PACKAGING AND THE 'COMPLETE:
MOTORIZED DOOR WITH SINGLE COIL MOUNTING BOARDS;
CIRCUIT OF A ROLLER WINDER CENTERING MACHINE on axis;
FILM BY MOTORIZED DRIVE strap CLOSING ON AIR HOSE
COMPLIANCE WITH PRESSURE CONTROL OF PRESSURE;
WELDING ROD WITH LONGITUDINAL AIR OPERATED AND RESISTANCE PROBE;
CROSS-CUTTING AND WELDING BARS WITH CUTTER BUILT;
TEMPERATURE CONTROL OF HIGH-PRECISION;
MOTORS AND ELECTRICAL PLC WITH LCD SCREEN AND
CERTIFICATE OF CONFORMITY
MANUAL INCLUDED
