- Condition: U s e d - Guarantee: Not included on price - Year of build: 1998 - More informations:

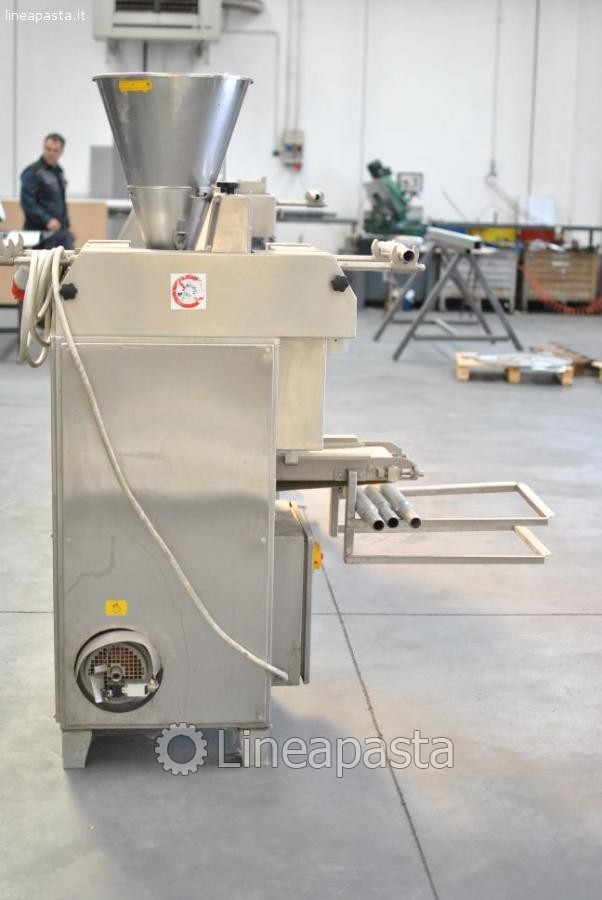

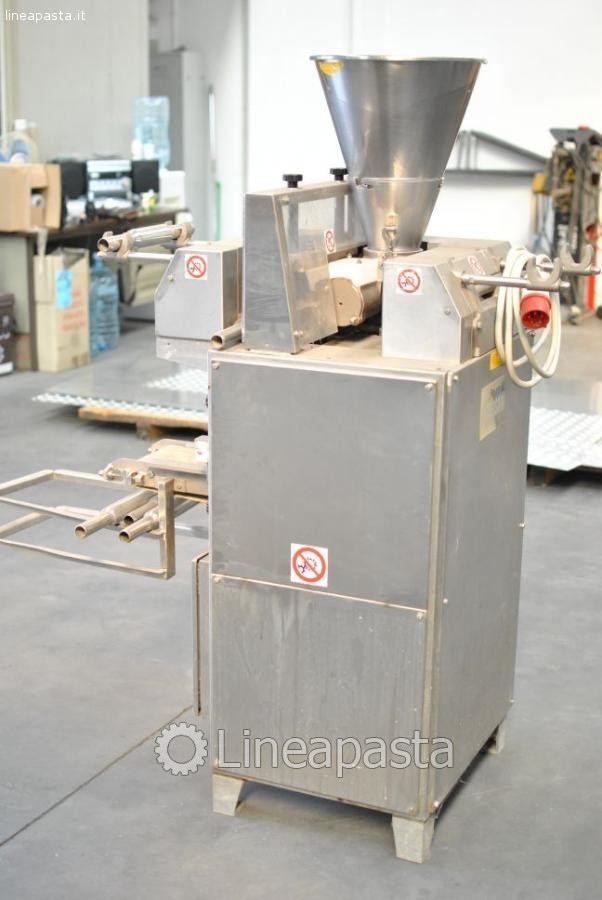

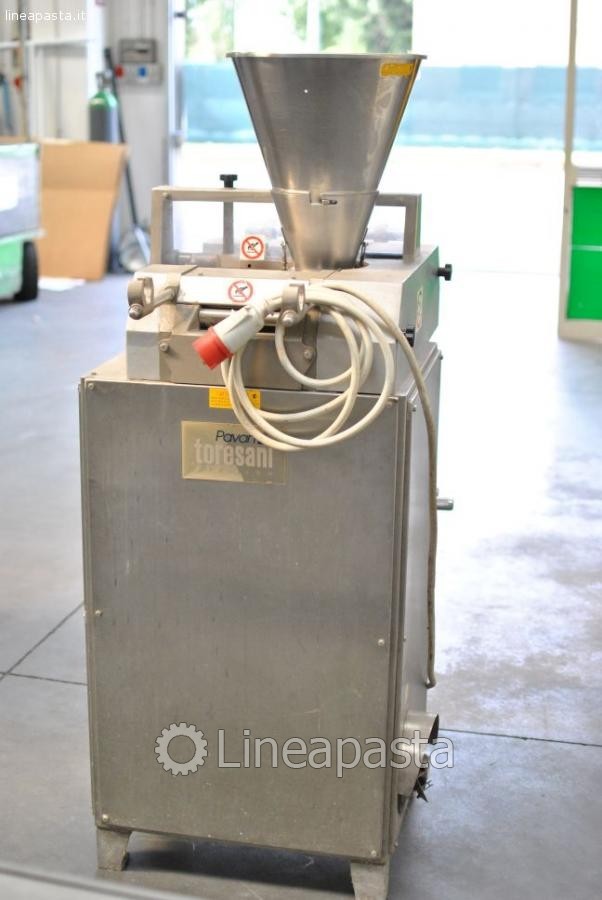

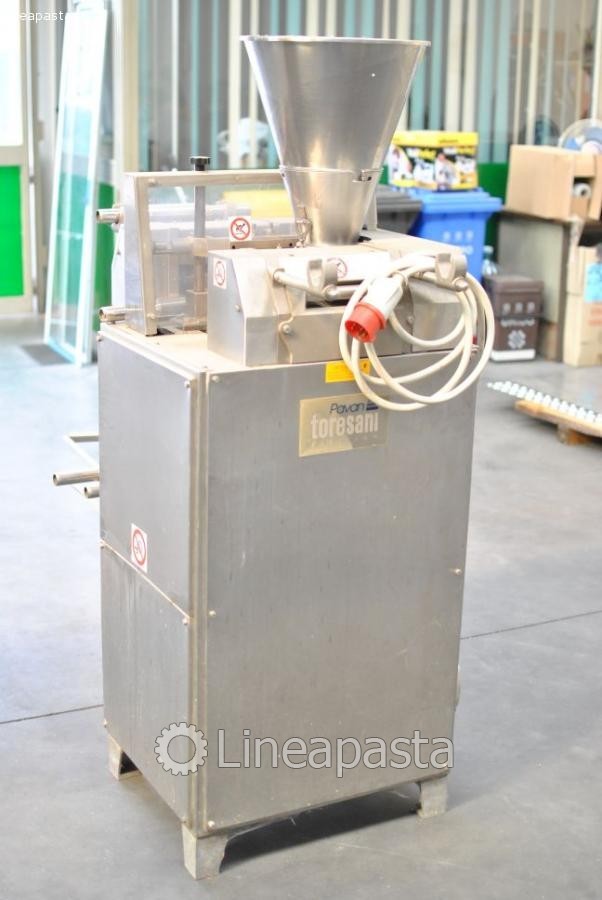

Designed for shop and small production facilities, it is a machine which produces square and round double sheet ravioli. Interchangeable dies allow for the production of different ravioli shapes and sizes.


- interchangeable dies

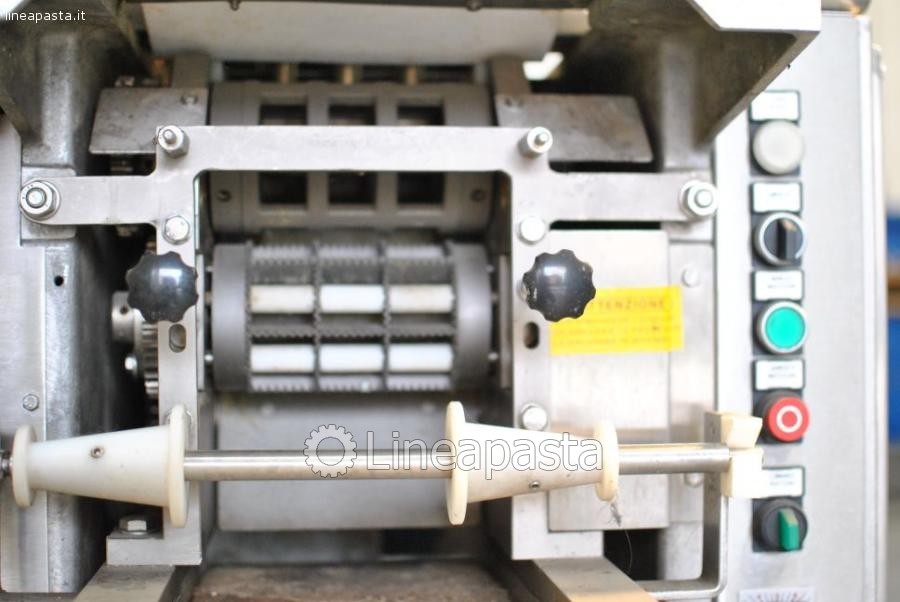

- Two sets of single gauging rolls
- tainless steel continuous filling system with a vari-drive that is independent of machine speed adjustment. The combination of a rotary valve and filling pistons provides an accurate and precise dosage of the filling, avoiding the problem of leakage from the edges of the ravioli and allowing for a use of a broad range of fillings.
- Stainless steel frame, panels and filling group
- Control panel mounted directly on machine.

Technical data:

- Working width: 150 mm
- Production capacity: from 50 to 100 Kg / h
- Overall dimensions: (mm) 650 x 1500 x 1610 (h)
- Dough infeed height: 1130 mm
- Product discharge height: 640 mm
- Scrap discharge height: 640 mm
- Filling hopper height: 1610 mm
- Power: 1.7 kW (380V / 50Hz)
- Machine weight: 310 Kg
