Important: this ad is no longer available because already sold or not for sale anymore. We invite you to visit our website to find any similar equipment.
Short cut pasta line BRAIBANTI 800-900 Kg/h
Ad #216
See all ads from Havlik
Lineapasta offers free shipping throughout Europe for this equipment but avails himself of the possibility to charge part of the shipment if the destination is found to be outside the traditional delivery circuits or of excessive economic relevance.
- Price
We deliver worldwide
Contact
Important: this ad is no longer available because already sold or not for sale anymore. We invite you to visit our website to find any similar equipment.
Enter the delivery address to calculate the shipping costs and proceed with the purchase
- Condition: U s e d
- Guarantee: 12 months warranty
- Year of build: 1990
- More informations:
Disassembled
Overhauled
Information
Vacuum press BRAIBANTI 460
After generally overhauled

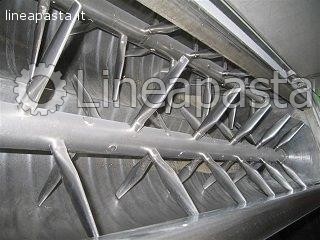

Fully automatic press with doser for flour and water, high speed pre mixer, double main mixer screw 165 mm, head with die 450 mm,
cutting unit for short cut pasta,
out blowing fan,
Vacuum pump.
Included three dies for different pasta shapes, as per customer requires.
Shaking pre dryer
After generally overhauled
5 tracks for the first drying, included all fans and heaters.
Pre dryer
After generally overhauled
7 Belts dryer stabilised for temperatures up to 90 °C

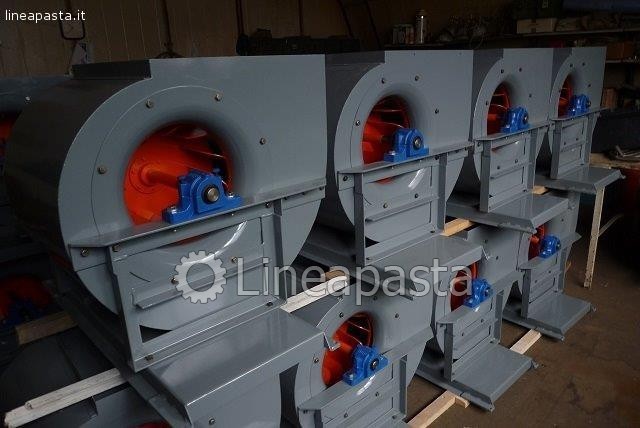

included all fans and heaters
Isolation in 60 mm PU panels.
Drying temperature 70 – 75 °C

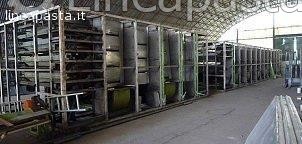

Main dryer
After generally overhauled
5 Belts dryer s stabilised for temperatures up to 90 °C
Included all fans and heaters
Isolation in 60 mm PU panels.
Drying temperature 70 – 75°C
Cooler
After generally overhauled
One belt cooler to cool the pasta to room temperature between 4 minutes
Electric panel
with all functions for using, safety, and control instruments.
Climate regulation
Fully automatic regulation of temperature and humidity in each dryers
to guarantee excellent drying system.
Necessary energy (out of offer, separate offer possible):
Heater 130 °C 230 KW
Electric energy 145 KW 380 V 50 Hz
Water for cooling cylinder 300 l/h
Fresh water for mixing 450 l/h
Guarantee:
12 month after start up
After generally overhauled
Fully automatic press with doser for flour and water, high speed pre mixer, double main mixer screw 165 mm, head with die 450 mm,
cutting unit for short cut pasta,
out blowing fan,
Vacuum pump.
Included three dies for different pasta shapes, as per customer requires.
Shaking pre dryer
After generally overhauled
5 tracks for the first drying, included all fans and heaters.
Pre dryer
After generally overhauled
7 Belts dryer stabilised for temperatures up to 90 °C
included all fans and heaters
Isolation in 60 mm PU panels.
Drying temperature 70 – 75 °C
Main dryer
After generally overhauled
5 Belts dryer s stabilised for temperatures up to 90 °C
Included all fans and heaters
Isolation in 60 mm PU panels.
Drying temperature 70 – 75°C
Cooler
After generally overhauled
One belt cooler to cool the pasta to room temperature between 4 minutes
Electric panel
with all functions for using, safety, and control instruments.
Climate regulation
Fully automatic regulation of temperature and humidity in each dryers
to guarantee excellent drying system.
Necessary energy (out of offer, separate offer possible):
Heater 130 °C 230 KW
Electric energy 145 KW 380 V 50 Hz
Water for cooling cylinder 300 l/h
Fresh water for mixing 450 l/h
Guarantee:
12 month after start up
Read more
