Long cut pasta line Buhler 900 - 1000 kg/h
Ad #115
See all ads from Havlik
Lineapasta offers free shipping throughout Europe for this equipment but avails himself of the possibility to charge part of the shipment if the destination is found to be outside the traditional delivery circuits or of excessive economic relevance.
- Price
We deliver worldwide
Contact
Important: this ad is no longer available because already sold or not for sale anymore. We invite you to visit our website to find any similar equipment.
Enter the delivery address to calculate the shipping costs and proceed with the purchase
- Condition: U s e d
- Guarantee: 12 months warranty
- Year of build: 1986
- More informations:
Currently working
Information
Long cut pasta line Buhler 1000 Kg/h
Manufacturer Bühler AG, CH - Uzwil
Year 1986
Power 900 - 1000 kg / h
The plant is at the moment in generally overhauling, afterwards it will work one year more and at end of 2013 the line is free to sell.
consisting of:

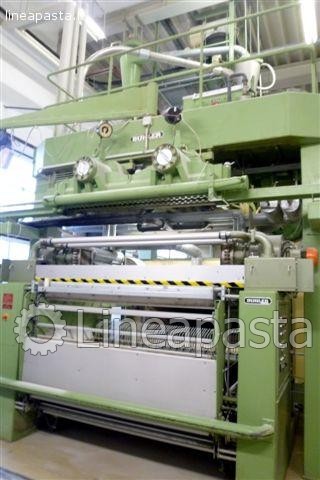

Press TPAD 145
Screws and cylinde revised
with press frame
TCMC with speed mixer
with TCDB-1 dose
with cyclone for feeding raw
Spreader TSSA
with waste transport back - TSSA
Fan backhaul
cyclone with the press and Aspirationtubes
TDEC predryer 1-1/3 complete circulation fans with all exhaust /
Heating pipes with mixing valves and sensors to heat distributor
with heat exchanger in final dryer
with parts for steam injection
line including heat distributor
including I / P Frequency

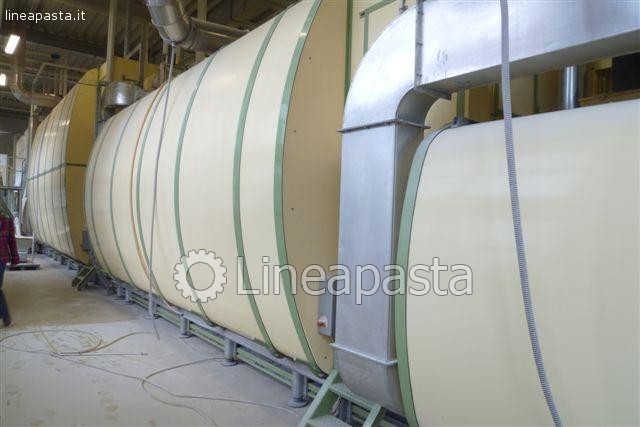

Predryer TDCA 2-3/4
Final dryer TDFC-5/5
Cooler TDEK-1/2
complete circulation fans with all the exhaust /
Cooling tubes with mixing valves and sensors to the cooler line
Cutting machine TSTA
complete with purge air
Mixer as Ventilator
Sluice MPS-22/19
Conveyor lines, Aspiration tubes
Grating, pipes and accessories
Forklift TAG 7/7
Various parts to TAG
Steam injection to TAG
El - Control cabinet for TSTA / TAG
Staff repatriation TAK
with chains to TAK
El - Control cabinet for TW - line
Klockner - Moeller makes
Throughput control PLC type PS24
Profile rods about 6000 pieces profiled bars
with straightening device
LW forms 1 unit form for spaghetti
Cascade to cutting machine TSTA
for the transport of the spaghetti to TSTA underlying bucket
Bucket full used to fire the two packaging machines and
one hand – packing space
Packing unit
Scales 2 pcs Ricciarelli PES-O-MATIC G3
Year 1988 and 1989
use of 150 – 220 g, and 380 gr - 1000 g
Packing machine 2 pcs Stiavelli TYPE SO-POLY
Year 1986
Year 1987
format with a shoulder for 500 g
Manufacturer Bühler AG, CH - Uzwil
Year 1986
Power 900 - 1000 kg / h
The plant is at the moment in generally overhauling, afterwards it will work one year more and at end of 2013 the line is free to sell.
consisting of:
Press TPAD 145
Screws and cylinde revised
with press frame
TCMC with speed mixer
with TCDB-1 dose
with cyclone for feeding raw
Spreader TSSA
with waste transport back - TSSA
Fan backhaul
cyclone with the press and Aspirationtubes
TDEC predryer 1-1/3 complete circulation fans with all exhaust /
Heating pipes with mixing valves and sensors to heat distributor
with heat exchanger in final dryer
with parts for steam injection
line including heat distributor
including I / P Frequency
Predryer TDCA 2-3/4
Final dryer TDFC-5/5
Cooler TDEK-1/2
complete circulation fans with all the exhaust /
Cooling tubes with mixing valves and sensors to the cooler line
Cutting machine TSTA
complete with purge air
Mixer as Ventilator
Sluice MPS-22/19
Conveyor lines, Aspiration tubes
Grating, pipes and accessories
Forklift TAG 7/7
Various parts to TAG
Steam injection to TAG
El - Control cabinet for TSTA / TAG
Staff repatriation TAK
with chains to TAK
El - Control cabinet for TW - line
Klockner - Moeller makes
Throughput control PLC type PS24
Profile rods about 6000 pieces profiled bars
with straightening device
LW forms 1 unit form for spaghetti
Cascade to cutting machine TSTA
for the transport of the spaghetti to TSTA underlying bucket
Bucket full used to fire the two packaging machines and
one hand – packing space
Packing unit
Scales 2 pcs Ricciarelli PES-O-MATIC G3
Year 1988 and 1989
use of 150 – 220 g, and 380 gr - 1000 g
Packing machine 2 pcs Stiavelli TYPE SO-POLY
Year 1986
Year 1987
format with a shoulder for 500 g
